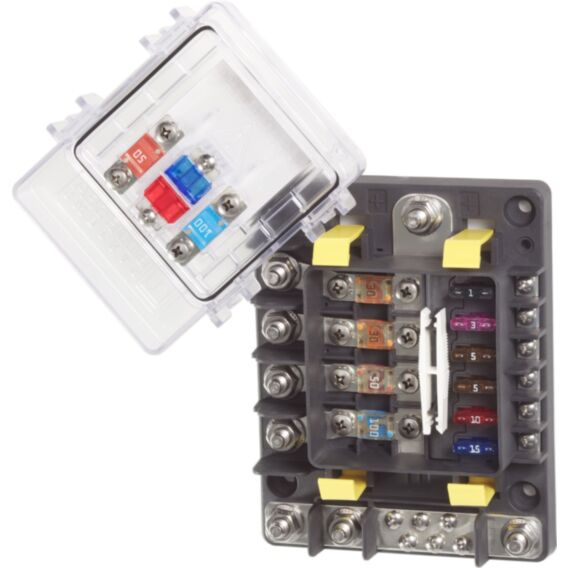

Fuse Block SafetyHub 150

SKU

BSS7748

An ignition protected fuse block with screw termination safe for use on gasoline-powered boats

Accepts four AMI® or MIDI® Fuses for high-amp circuits up to 200A
Accepts six ATO® or ATC® Fuses for circuits up to 30A including bilge pumps, electronics and lights
Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
The negative bus provides a common location for the negative connection
Circuit identification label with the write-on capability
Fuse puller easily removes ATO® or ATC® Fuses
The cover provides storage space for two spare ATO® or ATC® and two spare AMI® or MIDI® fuses and mounting screws
One-piece stainless flange nuts ensure safe and secure connections
Fuses sold separately

£168.97

RRP Ex. VAT

Specifications
Circuits	10
Stud Size	M8 x 1.25
Operating Voltage	12V 24V 32V
Amperage Maximum Operating - combined	200A* 350A 600A*
Recommended Ring Terminal	M8 (5/16")
Screw Torque, 8-32	18in-lb (2.03 Nm)
Screw Torque, M5	27in-lb (3.05 Nm)
Stud Torque	180 in-lb (20.34 Nm)
Weight	3.50lb (1.59 kg)
