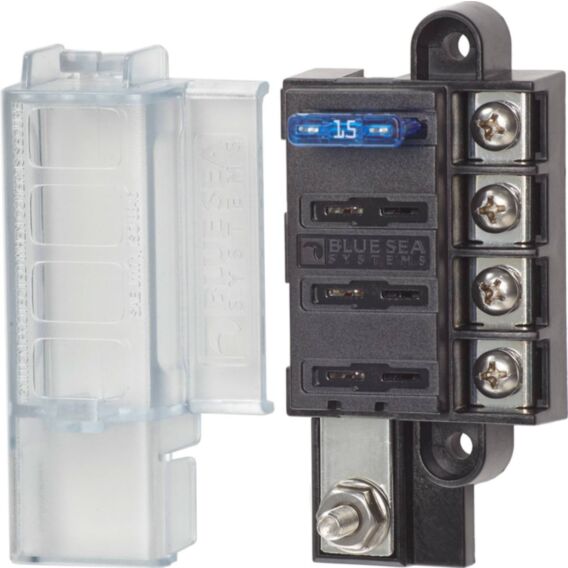

ST Blade Compact Fuse Blocks - 4 Circuits
SKU
ST Blade Compact Fuse Blocks - 4 Circuits
Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.
- Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Single side design allows wire entry from one side to minimize the footprint
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Includes 4 write-on circuit labels
- Fuses sold separately
As low as
£33.84
| Specifications | |
|---|---|
| Circuits | 4 |
| Maximum Amperage* | 100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Terminal Stud Torque | 24 in-lb (2.71 Nm) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Scews with captive star lock washer |
| Terminal Stud Size | #10-32 |
| Weight | 0.25lb (0.11 kg) |
*Maximum amperage ratings are dependent on the use of appropriately sized fused and wire for a given application
