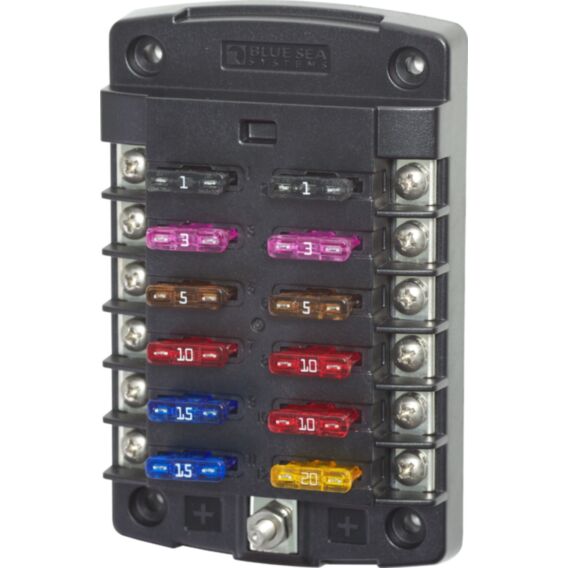

ST Blade Fuse Block - 12 Circuits
SKU
BSS5034
Consolidates branch circuits and in-line fuses
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
£58.77
RRP
Ex. VAT
| Specifications | |
|---|---|
| Circuits | 12 |
| Maximum Amperage* | 100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N·m) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
| Weight | 0.60lb (0.27 kg) |
*Maximum amperage ratings are dependent on the use of appropriately sized fuses and wires for a given application
