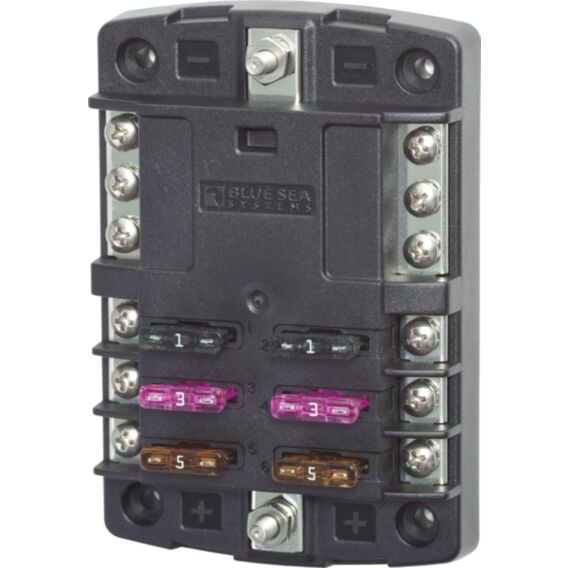

ST Blade Fuse Block - 6 Circuits with Negative Bus

Blue Sea Systems
SKU
BSS5030

Consolidates branch circuits and in-line fuses

  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately
£51.75
RRP Ex. VAT
Specifications
Circuits 6
Maximum Amperage* 100A per block
30A per circuit
Maximum Voltage 32V DC
Mounting #8 Screw (M4)
Negative Bus #10-32 Stud
Positive Bus #10-32 Stud
Recommended Torque 24 in-lb (2.71 N·m)
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32 Screws with captive star lock washer
Weight 0.47lb (0.21 kg)

*Maximum amperage ratings are dependent on the use of appropriately sized fuses and wires for a given application
