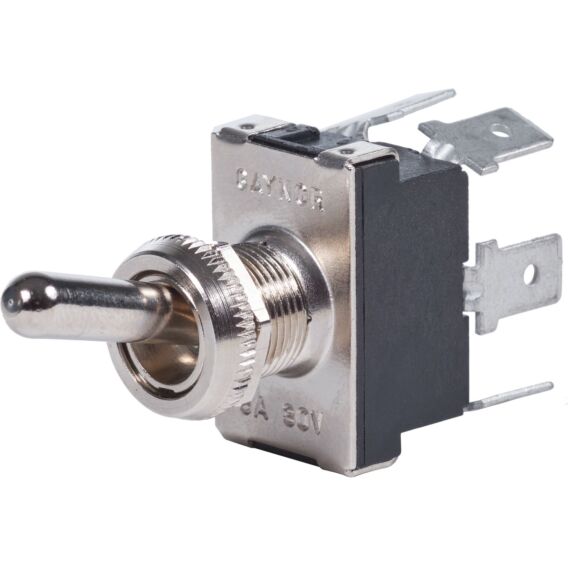

WeatherDeck® Toggle Switch DPDT - ON-OFF-ON

£18.04
RRP Ex. VAT
SKU
BSS4155
  • Specially manufactured by Carling Technologies for use in Blue Sea Systems' WeatherDeck® Panels
  • When mounted with a WeatherDeck® Toggle Switch Boot Rated IP67-temporary immersion for 30 minutes
  • Nickel-plated brass and phenolic non-corrosive construction
Specifications
Action ON-OFF-ON
Pole / Throw  DPDT
Poles 2
Common Applications combining nav lights with anchor light with shared bulb
Maximum Amperage* 5A
Maximum Voltage 30V DC
Terminal Type Quick Connect Tab
Number of Terminals 6
Terminal Size 0.25in (6.35 mm)
Weight 0.10lb (0.05 kg)



*Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application
