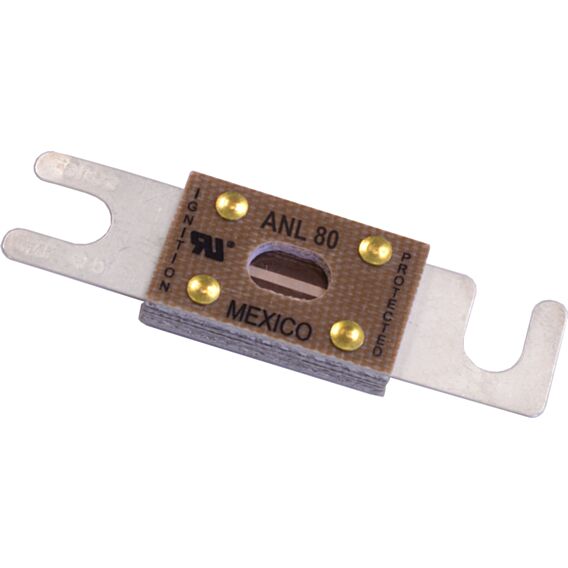

Fuse ANL 80 Amp
SKU
BSS5124
- Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats (35-500 Amp only)
- Silver-plated connector blades for corrosion resistance
- Visible indication of blown condition
- 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks
- For use with Blue Sea Systems' ANL Fuse Blocks
£29.07
RRP
Ex. VAT
| Specifications | |
|---|---|
| Amperage | 80A |
| Ignition Protected* | Yes |
| Maximum Voltage | 32V DC |
| Interrupt Capacity** | 6000A @ 32V DC |
| Weight | 0.05lb (0.02 kg) |
*Devices, which operate in a potentially explosive environment, must be ignition protected. This would include engine rooms with gasoline engines. There is a very specific set of tests which a device must pass to claim ignition protection. They include operating safely in an explosive mixture of propane and air.
**The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage.
