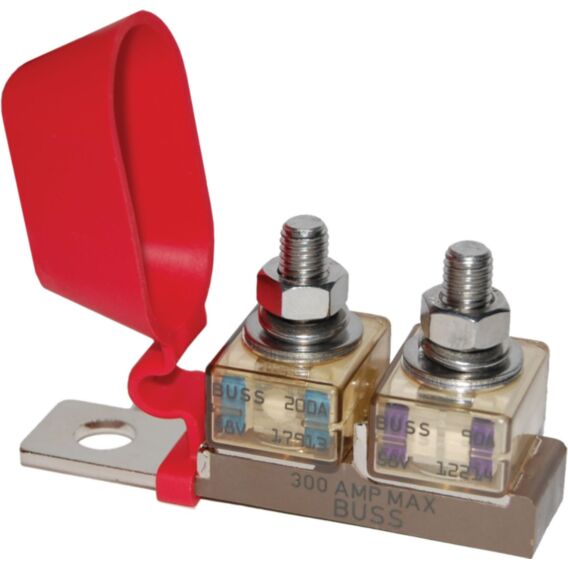

Dual MRBF Terminal Fuse Block - 30 to 300A
Blue Sea Systems
SKU
Dual MRBF Terminal Fuse Block - 30 to 300A
- Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
- Provides high current protection in tight space constraints
- Ignition protected when used with Blue Sea Systems' MRBF Terminal Fuse
- Isolated stud design uses standard M8 hardware and permits stacking of terminals
- Insulating cap prevents accidental shorts

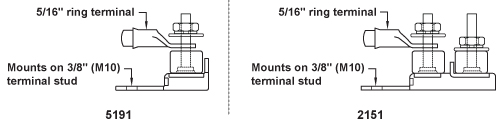

- Accepts 5∕16" ring terminals
- Mounts on 3/8” terminal studs
- Fuse sold separately
As low as
£41.34
| Specifications | |
|---|---|
| Ignition Protected* | No |
| Maximum Amperage** | 300A |
| Maximum Voltage | 58V DC |
| Terminal Stud | M8 (5/16") |
| Maximum Torque | 75 in-lb (8.47 Nm) |
| Weight | 0.30lb (0.14 kg) |
*Devices, which operate in a potentially explosive environment, must be ignition protected. This would include engine rooms with gasoline engines. There is a very specific set of tests that a device must pass to claim ignition protection. They include operating safely in an explosive mixture of propane and air.
**Maximum amperage ratings are dependent on the use of appropriately sized fuses and wire for a given application
