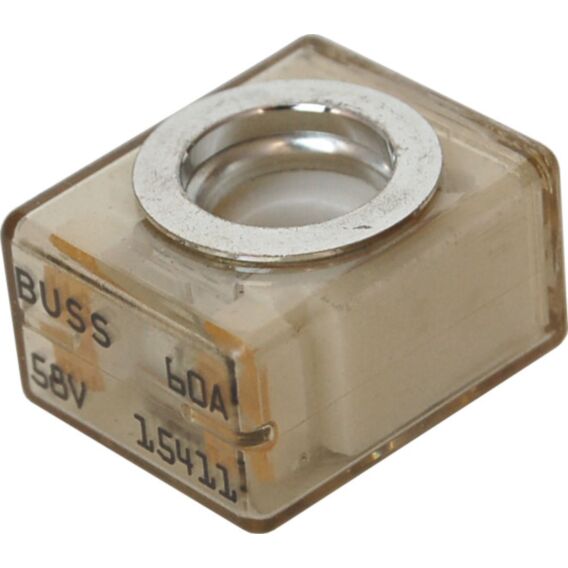

MRBF Terminal Fuse - 60A (Bulk)

Blue Sea Systems
SKU
BSS5178B
  • Requires the use of Terminal Fuse Blocks PN BSS5191—do not mount the fuse directly to the battery terminal
  • Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Clear window—visual indication of blown condition
  • Color coded for each amperage
£15.77
RRP Ex. VAT
Specifications
Amperage 60A
Ignition Protected* Yes
Maximum Voltage 58V DC
Interrupt Capacity** 10000A @ 14V DC
5000A @ 32V DC
2000A @ 58V DC
Weight 0.06lb (0.03 kg)



*Devices, which operate in a potentially explosive environment, must be ignition protected. This would include engine rooms with gasoline engines. There is a very specific set of tests that a device must pass to claim ignition protection. They include operating safely in an explosive mixture of propane and air.

**The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage.
