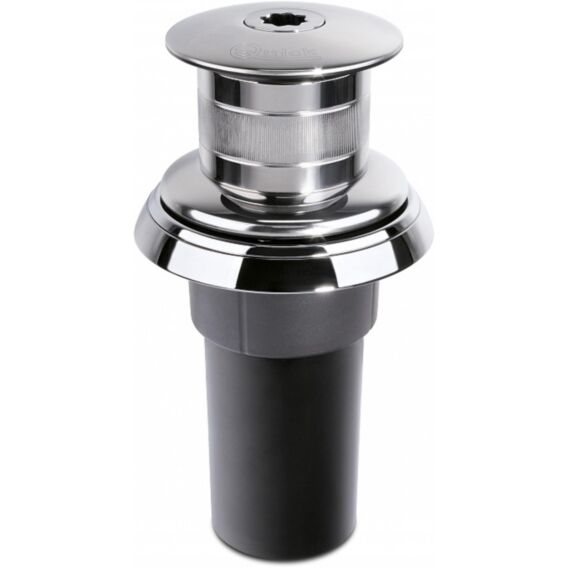

main product photo

Totem TM3 Capstan Series

Quick
SKU
Totem TM3 Capstan Series
✕
Size (Cm) XS S M L XL XXL
Height 155-160 160-165 170-175 180-185 185-190 190-195
Chest 82-86 87-91 97-101 107-111 112-116 117-121
Waist 66-70 71-75 81-90 91-95 96-100 101-105

The Totem is a capstan with a vertically mounted motor below the deck with easy drop-in installation. This unit comes equipped with an IP67 watertight motor and epicyclical gearbox that provides much higher efficiency 40% compared to equivalent traditional gearboxes. The drum and bass are composed of chrome-plated bronze. This unit is sold complete with the capstan solenoid unit clutch handle mounting hardware and users manual.

Where to buy

The Totem is a capstan with a vertically mounted motor below the deck with easy drop-in installation. This unit comes equipped with an IP67 watertight motor and epicyclical gearbox that provides much higher efficiency 40% compared to equivalent traditional gearboxes. The drum and bass are composed of chrome-plated bronze. This unit is sold complete with the capstan solenoid unit clutch handle mounting hardware and users manual.



  • Warping Winches
  • AISI Stainless steel 316 base
  • Vertical watertight motor for easy and fast drop-in installation
  • Anodized aluminium gearbox
  • The TM3 warping winche is equipped with an epicyclical gearbox, that provides much higher efficiency 40% compared to equivalent traditional gearboxes.
  • For boats from 8 to 18 meters (26 - 59 ft)
  • Drum Ø 130 mm / 5" 1/8


Quick TM3 Capstan Specifications
Specification TM3 1000 TM3 1100
Motor Power 800 W 800 W
Motor Supply Voltage 12 V 24 V
Maximum Pull 820 Kg / 1808 lb 820 Kg / 1808 lb
Maximum Working Load 290 Kg / 639 lb 290 Kg / 639 lb
Working Load 95 Kg / 209 lb 95 Kg / 209 lb
Current Absorption @ Working Load (1) 80 A 40 A
Maximum Chain Speed (2) 25.8 m/min / 84.6 ft/min 25.8 m/min / 84.6 ft/min
Maximum Chain Speed @ Working Load (2) 16.8 m/min / 55.1 ft/min 16.8 m/min / 55.1 ft/min
Drum Ø 130 mm / 5" 1/8 130 mm / 5" 1/8
Weight 8.1 Kg / 17.8 lb 8.1 Kg / 17.8 lb
(1) After an initial period of use
(2) Measurements taken considering drum diameter

Deck Installation Information
Deck Thickness 20 – 30 mm (25/32" – 1" 3/16)
Notes On request, studs can be supplied for greater deck thicknesses.
Dimensions in mm (inch).
Quick TM3 Windlass Range – For Boats from 8 to 18 Metres (26 – 59 ft)
Model Motor Power Boat Length (m) Boat Length (ft)
TM3 500 W 8 – 12 m 26 – 39 ft
TM3 800 W 12V 11 – 14 m 36 – 46 ft
TM3 800 W 24V 11 – 18 m 36 – 59 ft
The indication may vary according to the boat type.
