Product Information

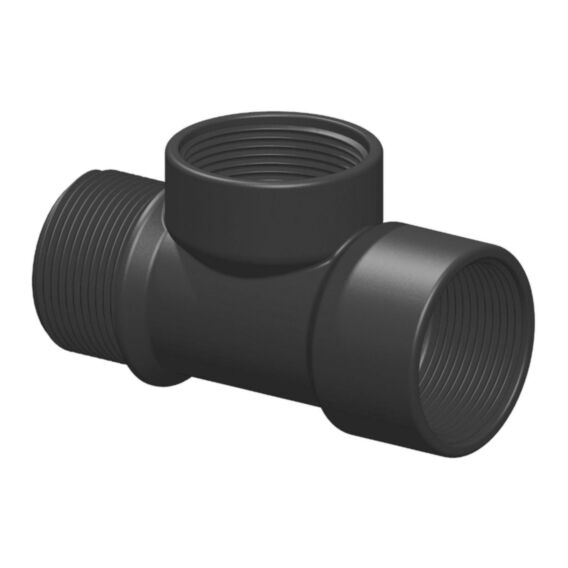

This 1 1/2" Threaded T-Piece features 2 Female threads and 1 male thread, enabling the pieces to be joined together to create manifolds - they are useful for multiple hose connections to a single Ball Valve and Thru-hull fitting. The centre female thread is shorter and is designed for use with Aquavalve Tails (Straight, 90°, and 120°), giving the option of tail sizes from 19mm up to 38mm. In addition, the Plug, or Threaded Connector can also be used in the centre connection.

Please note that all TruDesign Aquavalve Tails, which are used with the T-Piece do not face-seal using the red or blue washers as they do when used in Aquavalves. Instead, TruDesign recommend that you use a suitable thread sealant or PTFE tape to seal the threads. The 1 1/2" Male and Female Threads at each end are also parallel and are designed to seal through the use of a suitable sealant or PTFE tape, allowing any orientation of the two joined parts. Do not over tighten.

• Chemical Resistant - Unaffected by diesel, petrol, household chemicals, and antifouling paints
• Corrosion Free - Long life with no decreased performance due to corrosion or electrolysis
• Large Operating Range - Suitable for all marine conditions from -40°C to +110°C
• Quality Finish - High quality surface finish - will not discolour with green film as similar bronze fittings do
• Strong and Lightweight - Manufactured from a glass reinforced nylon composite - high strength without the weight
• UV Resistant - Will not degrade or discolour from the sun's ultraviolet rays

Product Specifications

• Size: 1 1/2" | 38mm
• Weight: 111g | 3.92oz
• Thread: BSP
