Streamline Water-resistant Switch Panel
SKU

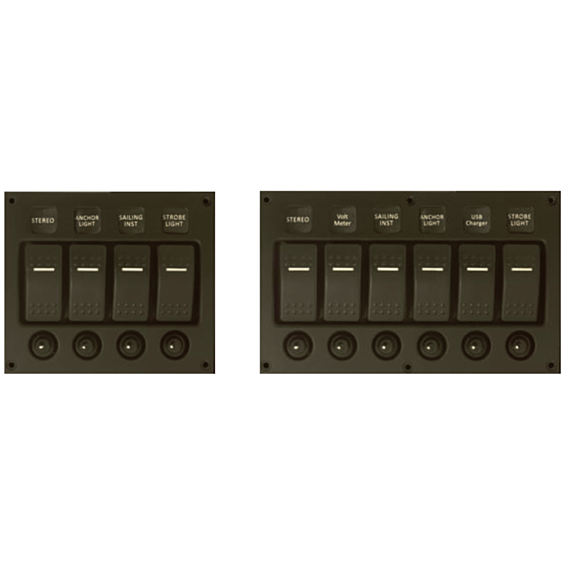

Streamline Water-resistant Switch Panel
As low as
£77.31
Description
Coming with the IP66 C-7 sealed rocker Switches, these switch panels are one of our most weather-proof switch panel series. The modular mini panels allow consumers to build switch panels with their own customized features. With modern curved faceplate design and new backlighted label features, these panels are stylish, high performance switch panels with complete features.
Features
- New modern curved and compact panel design (15% smaller than SP30xx series)
- Mini modular panels allow free combinations at consumersʼ side
- Backlight modules for labels, allowing easy operation in darkness
- IP66–protect against strong water jets
- Push-reset circuit breakers with rubber boots
- Illuminated (LED) C-7 rocker switches with dual voltage rating (12V / 24V)
- Watertight mounting gasket included
- Square shaped label stickers (30pcs) allow vertical or horizontal installation
Specifications
- Faceplate | Curved shaped plastic (ABS)
- Circuit Protection | Circuit Breakers
- Switch Ratings | 20A @ DC 12V / 10A @ DC 24V (Dual Voltage)
- Panel Rating | Max Cumulative Amp: 45A (Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)
