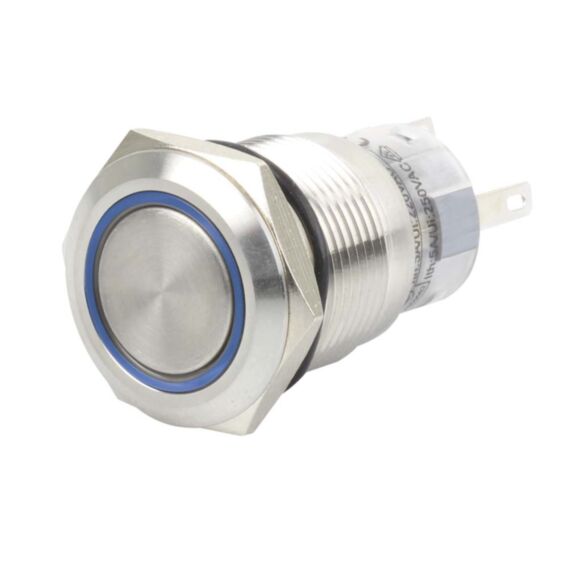

Ideal for a wide range of interior and exterior applications such as controlling and dimming lighting or operating accessories, this attractive stainless steel switch is IP67 rated when installed and features a ring of blue LED light.

On board the last generation of Volvo Ocean Race yachts, Hella Marine’s LED switches were installed into steering pedestals and endured maximum exposure to the elements, proving that they can work even in the most unforgiving oceans.

Product Specifications

• Version: Momentary switch
• Voltage: 24V
• Light Colour: Blue
• Button Material: 304 Stainless Steel
• Body Material: 304 Stainless Steel
• Contact Material: Silver Alloy
• Terminal Type: 5-Pin (2.8 x 0.5mm) switches. 2 screws for buzzer
• Panel Thickness: 1~ 10mm
• Operating Temperature: -20C~ +55C
• Insulation Resistance: ≥1000MΩ
• Contact Resistance: ≤50mΩ
• Switch Rating: 5A
• Degree of Protection: IP67
