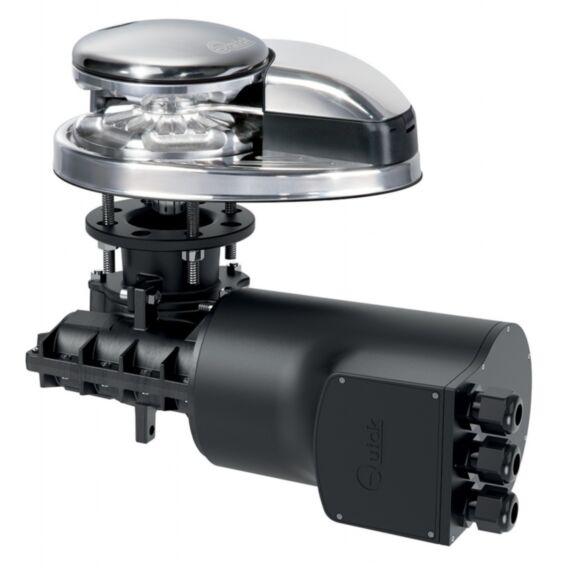

main product photo

Quick DP3 1000 Windlass Gypsy Only Mk2 (700W / 24V / 8mm)

SKU
FSDP31012008B00

The Quick FSDP31012008B00 - DP3 P 1012 Windlass is a compact vertical windlass ideal for boats with limited deck space. Crafted from durable AISI 316 stainless steel, it ensures long-lasting performance in challenging marine conditions. With a powerful 1000W motor operating on 12V, it accommodates boats ranging from 33 to 46 feet (10.05 to 14.02 meters). This windlass features a rope/chain gypsy, an IP67 watertight motor, and a manual free-fall system for quick anchor deployment, making it a reliable choice for any boating enthusiast.

£1,224.91
RRP Ex. VAT
Where to buy

Quick DP3 1000 Windlass Mk2 -Gypsy Only

The Quick DP2 Prince 1000 vertical windlass is suitable for boats from 8m to 13m (26 to 43ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" rope.

  • Vertical windlasses
  • Stainless steel Aisi 316 base and anodized aluminium in hard oxide With and without drum
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for chain counter
  • Manual Free-Fall system
  • Supplied with pressure lever
  • Inspection lid
  • Motor watertight to IP67
  • Technopolymer gearbox (1000W)

Specifications:

Primary Construction

Suitable For

Boat Size

Gypsy Size

Series

Model

Motor supply voltage

Wattage

Working Load

Maximum Pull Load

Maximum Chain Speed

Amps Description

Fuse

Contents



Height Description

Width

Depth

Weight - DP2E - [without drum]

Size

Stainless Steel

Chain and Rope

7m to 12m metres in length

8mm

Prince DP3

1000

24 V

700W

150 Kg / 331 lb max working load 450 Kg / 992 lb

1000 Kg / 2204 lb

21,4 m/min / 70.2 ft/min

Current Absorbtion At Working Load: 80 A

50A Protection Circuit Breaker

Contactor Units, Nylon Handle, Foot Switch, Hydraulic Magnetic Circuit Breaker, Drilling Template, User Manual

287.5mm (11-5/16")

 196mm (7-23/32")

145.4mm (5-23/32")

17,4 Kg / 38 lb

 Motor Cable: 25mm2 (AWG3)
