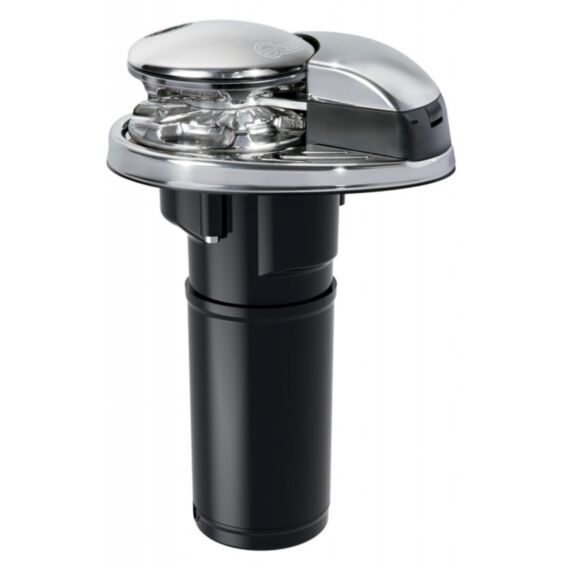

Quick DP2L 770 Vertical Windlass (350W / 12V / 6mm)

SKU
FSDP2L060006A00

Quick DP2L 770 Vertical Windlass (350W / 12V / 6mm) vertical windlass 8mm is suitable for boats from 7m to 12m (23 to 40ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" rope.

£888.29
RRP Ex. VAT
Where to buy

Quick DP2L 770 12V 350W vertical windlass

Quick DP2L 770 12V 350W vertical windlass for boats from six to eight meters (20-26ft). The Quick FSDP2L060006A00 windlass has a stainless steel AISI 316 base and BHC construction with a rope and chain on a single gypsy. Other features include an integrated sensor and magnet for chain counter, a manual Free-Fall system, motor watertight to IP66 and a BHC material gearbox. Chain: 6mm DIN 766, 6mm ISO. Rope: 1/2", 12.7mm. Gypsy OD: 105mm (4-9/64")

Key Features

  •  Vertical windlasses
  •  Stainless steel Aisi 316 base and BHC
  •  Rope and chain on a single gypsy
  •  Integrated sensor and magnet for chain counter
  •  Manual Free-Fall system
  •  Supplied with pressure lever and inspection lid
  •  Motor watertight to IP66
  •  BHC material gearbox

Specifications:

Primary Construction

Suitable For

Boat Size

Gypsy Size

Series

Model

Voltage Description

Wattage

Working Load

Maximum Pull Load

Maximum Chain Speed

Amps Description

Stainless Steel

Chain and Rope

6m to 8m metres in length

6mm

Prince DP2L

770

12V DC

350W

40 Kg / 88 lb max 80 Kg / 176 lb

350 Kg /771 lb

17 m/min / 55 ft/min / at working load 15 m/min / 49 ft/min

Current Absorbtion At Working Load: 30 A
