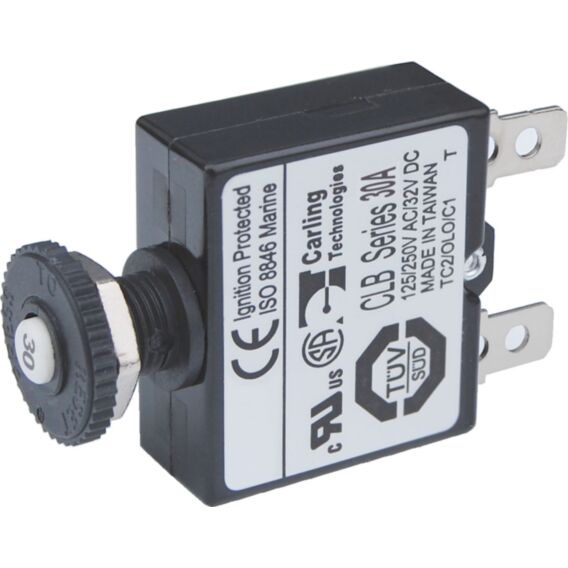

Push Button Reset Only Quick Connect Circuit Breaker-30A

Blue Sea Systems
SKU
BSS7059
  • Branch circuit breakers (can also be used for 24-hour circuit protection)
  • Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
  • Compact design enables high density circuit protection configurations
  • Push-to-reset operation
  • “Trip Free” design cannot be held “ON” during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
£7.13
RRP Ex. VAT
Specifications
Amperage 30A
Maximum Voltage 32V DC
Mounting Panel Mount 3/8-27 UNS
Circuit Breaker Type Thermal trip, manual push-button reset only
Terminal Type 1/4 Male Quick Connect
Interrupt Capacity* 3000A @ 14.7V
2500A @ 28V
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Screw Terminal Torque 6 in-lb (0.68 Nm)
Weight 0.06lb (0.03 kg)



*The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage.
