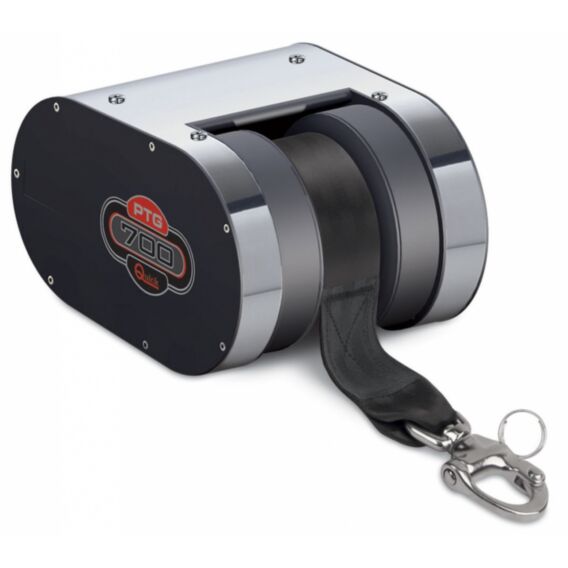

PT Series PT 700 G Capstan 700lb 12V
SKU
FSPT0700G000A00
PT multipurpose capstan
The models of the PT series are special electrical capstans designed to weigh anchor onboard of pontoon or boats with a little space available. It can be easily installed either above or below the deck. PT models can also be used as fishing capstans or to lift the tender onboard of yachts. The roller can retrieve strip 48 mm large, 7.5 m long.
The PT model is available in the windlass version, complete with bow-roller on request or in a tender-recovery version, complete with reel for lines snap-hook.
The models of the PT series are special electrical capstans designed to weigh anchor onboard of pontoon or boats with a little space available. It can be easily installed either above or below the deck. PT models can also be used as fishing capstans or to lift the tender onboard of yachts. The roller can retrieve strip 48 mm large, 7.5 m long.
The PT model is available in the windlass version, complete with bow-roller on request or in a tender-recovery version, complete with reel for lines snap-hook.
£1,471.14
RRP
Ex. VAT
PT multipurpose capstan
The Quick PT Pontoon 700G horizontal capstan winch is suitable for weighing anchor onboard pontoon or boats where space is limited, as well as being used as a fishing capstan or to lift the tender onboard a yacht. The capstan features an AISI 316 stainless steel and anodised aluminium construction, making it well protected and durable. The PT 700g capstan is easy to install above or below the deck and can retrieve a strap measuring 48mm wide by 7.5 metres long.
- Capstans with roller for strap
- AISI 316 stainless steel and anodized aluminium
-
available in the windlass version, complete with bow-roller on request or in a tender-recovery version, complete with reel for lines snap-hook.
Specification:
| Material | Stainless Steel |
|---|---|
| Primary Construction | Stainless Steel |
| Brand | Quick |
| Series | Pontoon - PT |
| Model | 700 G |
| Voltage | 12V DC |
| Wattage | 250 W |
| Working Load | 80 kg (176 lb), Maximum: 220 kg (485 lb) |
| Maximum Pull Load | 600 kg (1323 lb) |
| Maximum Chain Speed | 20.8 m/min (68.2 ft/min), At Working Load: 18.1 m/min (59.4 ft/min) |
| Amperage | 23A at 80 kg |
| Fuse | 20A Protection Circuit Breaker |
| Contents | Capstan, Contactor Unit, Bolts and Screws, Drill Template, User Manual |
| Approvals | CE |
| Height | 173 mm (6-13/16") |
| Width | 220 mm (8-43/64") |
| Depth | 294 mm (11-37/64") |
| Diameter | Mounting Holes: 4 × 9 mm (23/64") |
| Thickness | Deck: 20 – 40 mm (3/4" – 1-9/16") |
| Dimensions | Distance Between Mounting Holes: 160 mm × 105.5 mm (6-19/64" × 4-5/32") |
| Motor Cable Size | 10 mm² (AWG7) |
