Prince - DP2E Series Windlass

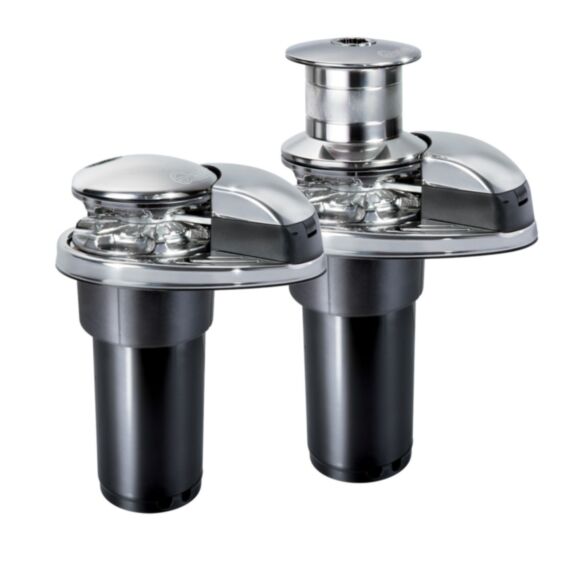

The Quick DP2E vertical windlass range is ideal for boats from 6 to 12 m (20–40 ft). Easy to install with a stainless steel base, it features a manual free-fall system, chain counter sensor, and an 8 mm gypsy suitable for ISO chain and rope. Kit versions include a contactor unit, foot switch, nylon handle, and hydraulic magnetic circuit breaker for complete, ready-to-use installation.
The Quick DP2E vertical windlass range is designed for boats from 6 m to 12 m (20 to 40 ft), covering models from the 500 W DP2E 600 up to the 800 W DP2E 1000. These vertical mount windlasses are easy to install on decks, featuring a durable AISI 316 stainless steel base for long-lasting corrosion resistance.
All models in the range include an integrated sensor and magnet for chain counter functionality and a manual free-fall system for quick anchor release. The DP2E windlasses come with an 8 mm (5/16") gypsy, compatible with 8 mm ISO chain and up to 1/2" rope, ensuring smooth anchor handling.
The kit versions are supplied complete with a contactor unit, nylon handle, foot switch, and a hydraulic magnetic circuit breaker, providing a ready-to-install solution for reliable and safe anchoring.
- Vertical windlasses
- Stainless steel Aisi 316 base and anodized aluminium in hard oxide.
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- Motor watertight to IP66
- Anodized aluminium gearbox
| Specification | DP2E 600 / 600 D | DP2E 1000 / 1000 D 12 V | DP2E 1000 / 1000 D 24 V |
|---|---|---|---|
| Motor Power | 500 W | 800 W | 800 W |
| Motor Supply Voltage | 12 V | 12 V | 24 V |
| Maximum Pull | 620 kg / 1367 lb | 820 kg / 1808 lb | 820 kg / 1808 lb |
| Maximum Working Load | 200 kg / 441 lb | 290 kg / 639 lb | 290 kg / 639 lb |
| Working Load | 65 kg / 143 lb | 95 kg / 209 lb | 95 kg / 209 lb |
| Current Absorption @ Working Load | 60 A | 84 A | 53 A |
| Maximum Chain Speed | 22.9 m/min / 75.1 ft/min | 22.5 m/min / 73.8 ft/min | 22.6 m/min / 74.1 ft/min |
| Maximum Chain Speed @ Working Load | 18.6 m/min / 61.0 ft/min | 15.2 m/min / 49.9 ft/min | 16.8 m/min / 55.1 ft/min |
| Weight – DP2E [without drum] | 8.3 kg / 20.9 lb | 8.3 kg / 20.9 lb | 8.3 kg / 20.9 lb |
| Weight – DP2E D [with drum] | 9.1 kg / 23.6 lb | 9.1 kg / 23.6 lb | 9.1 kg / 23.6 lb |
|
Notes: (1) After an initial period of use. (2) Measurements taken with a gypsy for an 8 mm chain. |
|||
| Model | Power | Boat Length (m) | Boat Length (ft) |
|---|---|---|---|
| DP2E | 500 W | 6 – 10 m | 20 – 33 ft |
| DP2E | 800 W | 7 – 12 m | 23 – 40 ft |
| Note: The indication may vary according to the boat type and the anchor-rode type. | |||
| Specification | Details |
|---|---|
| Gypsy and Drum Diameter | Ø 105 mm / 4" 9/64 |
| Gypsy | 6 mm, 7 mm – 1/4", 8 mm, 5/16" |
| Chain Compatibility |
6 mm (DIN 766, ISO) 7 mm (DIN 766, ISO, G4, BBB) 8 mm (DIN 766, ISO, BBB, G4) 5/16" (DIN 766, ISO, BBB, G4) |
| Rope Size | 1/2" (12.7 mm) |
| Note: The values refer to a three-strand polyester rope with a rope/chain splice manufactured using the Quick® system. | |
