DP1 P 512 Windlass 500W 12V 6mm

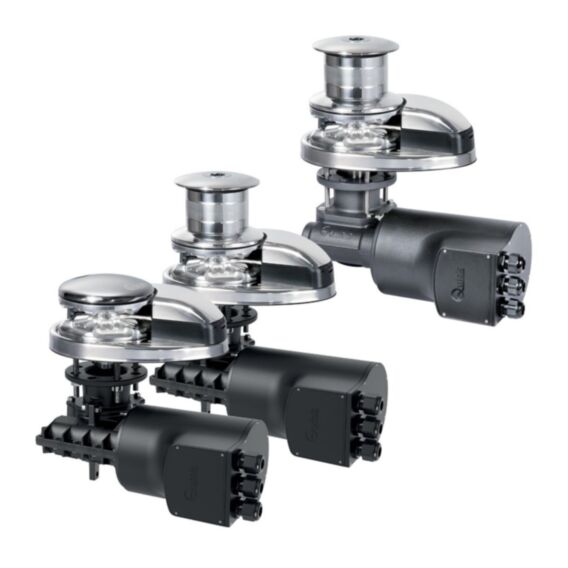

Quick DP2L 770 12V 350W vertical windlass for boats from six to eight meters (20-26ft). The Quick FSDP2L060006A00 windlass has a stainless steel AISI 316 base and BHC construction with a rope and chain on a single gypsy. Other features include an integrated sensor and magnet for chain counter, a manual Free-Fall system, motor watertight to IP66 and a BHC material gearbox. Chain: 6mm DIN 766, 6mm ISO. Rope: 1/2", 12.7mm. Gypsy OD: 105mm (4-9/64")
Quick DP2L 770 12V 350W vertical windlass for boats from six to eight meters (20-26ft). The Quick FSDP2L060006A00 windlass has a stainless steel AISI 316 base and BHC construction with a rope and chain on a single gypsy. Other features include an integrated sensor and magnet for chain counter, a manual Free-Fall system, motor watertight to IP66 and a BHC material gearbox. Chain: 6mm DIN 766, 6mm ISO. Rope: 1/2", 12.7mm. Gypsy OD: 105mm (4-9/64")
- Vertical windlasses
- Aisi 36 Stainless steel base and anodized aluminium in hard oxide
- With and without drum
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Inspection cover
- IP66 Watertight motor
- Technopolymer gearbox
| Standard Version | DP2L 770 |
|---|---|
| Motor Power | 350 W |
| Motor Supply Voltage | 12 V |
| Maximum Pull | 350 kg / 771 lb |
| Maximum Working Load | 80 kg / 176 lb |
| Working Load | 40 kg / 88 lb |
| Current Absorption @ Working Load | 30 A |
| Maximum Chain Speed | 17 m/min / 55 ft/min |
| Maximum Chain Speed @ Working Load | 15 m/min / 49 ft/min |
| Weight | -- kg / -- lb |
|
Notes: (1) After an initial period of use. (2) Measurements taken with a gypsy for an 8 mm chain. |
|
