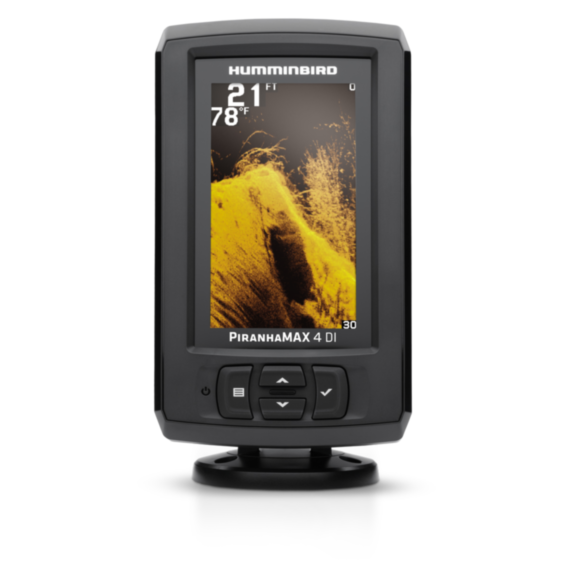

Sharper image. Sharper teeth. With modern styling and a larger 4.3" color LCD, the PiranhaMAX™ 4 DI will give you a fresh perspective on what's below your boat. Thanks to a redesigned, even easier-to-use interface, the power of Down ImagingⓇ, Fish ID+™, fish alarms, depth alarms and zoom has never been simpler. Feature for feature, it packs a technological chomp that no fishfinder in its class can match.
Dual Beam Sonar: Choose from a narrow and a wide beam for great detail or a generous coverage area, helping you identify fish, structure and contours.
Down Imaging: Get a clear view of what's happening below your boat with Down Imaging. As you patrol the water, you'll watch timber, brush, bridge pilings, rocks and any other structure pop with great detail.
Tilt and Swivel Mount: Quickly adjust your viewing area angle.
Display Size - Diagonal: 4.3"
Display Pixel Matrix: 272H x 480V
Sonar-Standard: Down Imaging, Dual Beam
Sonar-Coverage: 28°, 16°, & 74° @ -10dB
Sonar-Frequencies Supported: 200/455/455 kHz
Depth-Sonar: 320 ft (20) 455 kHz, 600 ft (20) 200 kHz
Depth-Down Imaging: 320 ft
Interface: Keypad Control
Features: Down Imaging
Memory Card Slot: None
Power Draw: 180 mA
Power Input: 10.8-20 VDC
Power Output Peak-to-Peak: 2400 Watts
Power Output RMS: 300 Watts
Screen Snap Shot: Not Supported
Mount-Standard Size: 3.91" W x 7.34" H x 3.62" D
Mount-Optional: In-Dash Mounting Kit
Mount-Optional Size: 3.91" W x 5.875" H x 2.5" D
Transducer Included: XNT 9 DI T (710226-1)
Transducer Mount Location: Transom
GPS Chartplotting: Not Supported
GPS Receiver: Not Supported
GPS Trackplotting: Not Supported
Humminbird Basemap: Not Supported
LakeMaster Compatibility: No
Platinum Compatibility: No
Target Separation: 2.5"
Upgradable Software: No
Display Colors Grayscale: 256 Color
Display Type: Color TFT
Speed: Not Supported
Temperature: Built In
