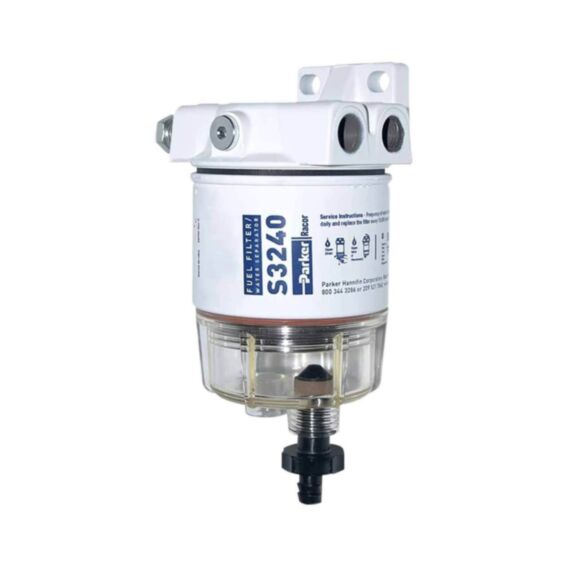

Petrol Marine Fuel Filter Water Separator – Racor Spin-on Series 10 Micron
Marine fuel filter water separator - Racor spin-on series
A replacement element for the 500FG Turbine housing in the Racor range, rated at 10 micron filtration, designed for marine or industrial diesel fuel systems using Aquabloc® media. Data scant; assume similar to 2010TM: ~10 µm, Aquabloc®, for 500 series
Technical Specifications
Flow Rate: 30 gph / 114 lph
Port Size: 1/4”-18 NPTF
UL Certification: No
Bowl Material: Clear Engineering Plastic
Micron Rating: 98% @ 10 Micron
Product Series: Marine Spin-on FF/WS, Gasoline Spin-on
Brand: Racor
Filtered Medium: Gasoline
Mounting Type: Bracket Included
Clean Pressure Drop: 0.2 psi, 1.38 kPa
Integral Primer Pump: No
Compatible Element:
S3240 = 10 micron
S3240TUL = 10 micron
Filter Element Type:
10 Micron Aquabloc Spin-on
Height: 6.5 inch, 16.5 cm
Width: 3.2 inch, 8.1 cm
Depth: 3.2 inch, 8.1 cm
Weight: 1.1 lb / 0.5 Kg
Maximum Operating Pressure: 7 psi, 48.3 kPa
Head Material: Power Coated Aluminium Alloy
Number of Ports: 2 Inlet / 2 Outlet
Operating Temperature: -40 to 250 °F, -40 to 121 °C
Maximum Fluid Temperature: 190.0 °F, 88.0 °C
