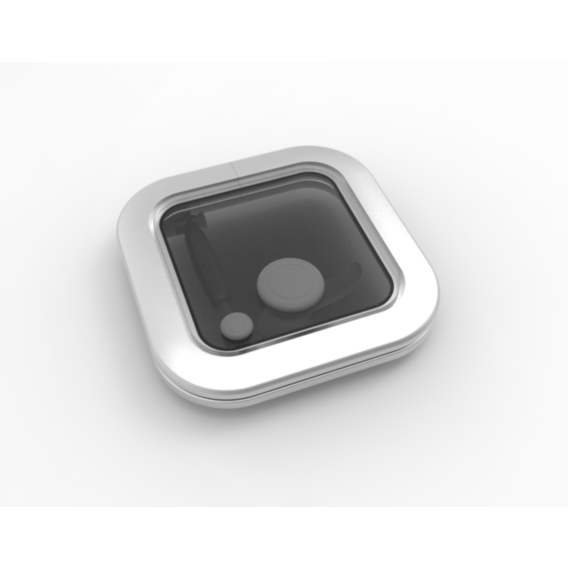

main product photo

Opal Hatches

Goiot Systems
Goiot Systems
SKU
Opal

True to Goiot quality tradition, the Opal hatches range combines optimal water tightness, easy installation and aestheticism thanks to its many technical advantages. The aluminium hinges are invisible, the one-piece aluminium lid with a thick frame section provides optimal rigidity, and is always more discreet thanks to its low height (up to 19 mm for teak decks).
The available sizes are common standards used on large series boats.



  • Supplied as standard with a grey acrylic
  • Telescopic stay
  • Mounting on a flat surface with a ± 0.5 mm tolerance
  • Approved in CE areas IIa, III and IV (except T80- consult us
As low as £233.30
Where to buy

Size

Weight (Kg)

Cut-out dimensions (mm)

Overall dimensions (mm)

Cut-out radius (mm)

Acrylic thickness (mm)

Lid height (mm)

Frame flange (mm)

T00

2.5

211 x 211

265 x 265

42.5

10

29

15

T03

2.6

231 x 176

285 x 230

42.5

10

29

15

T10

3.2

260 x 260

314 x 314

42.5

10

29

15

T18

4.9

Ø420

Ø474

-

10

29

15

T20

3.5

347 x 202

401 x 256

42.5

10

29

15

T22

7.3

Ø518

Ø572

-

10

29

15

T30

5.6

457 x 327

511 x 381

42.5

10

29

15

T40

6.2

421 x 421

475 x 475

42.5

10

29

15

T44

6.7

442 x 442

496 x 496

42.5

10

29

15

T50

5.4

507 x 377

561 x 431

42.5

10

29

15

T54

7.2

507 x 392

561 x 446

42.5

10

29

15

T60

7.9

507 x 507

561 x 561

42.5

10

29

15

T70

10.8

627 x 627

681 x681

42.5

10

29

15

T80

14.5

797 x 797

851 x 851

42.5

10

29

15



Closing system

The ergonomic shape of the handles ensures comfortable space for excellent prehension. They feature a lock catch which prevents breaking in from outside.

All models are equipped with adjustable stay up to 160°.



Watertightness

The hatch features a double contact seal system. When closing, the first lip absorbs the wave while a second contact point ensures ultimate water tightness. When opening, the angled frame allows the water to drain out.



Options:

  • special dimensions
  • aluminium sheet glazing
  • gas springs
  • lock
  • ventilator
