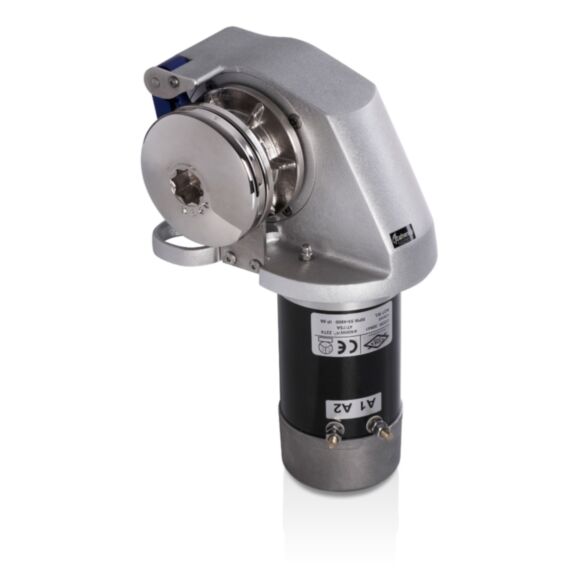

OBI 500 Horizontal Windlass Range
SKU
OBI 500 Horizontal Windlass Range
With different drives available, the Italwinch OBI 500 Horizontal Windlass range is recommended for boats up to 9m.
As low as
£579.99
Product Information
- Anticorodal anodised aluminium horizontal windlass
- OBI 500 can use chains which are 6mm and 8mm in diameter and is equipped with rope tensioner
- With different drives and recommended for boats up to 9m
Product Specifications
| OB_0512_06L | OB_0712_06L | OB_0712_08L | |
| Electric Motor | 500W | 700W | 700W |
| Motor Supply Voltage | 12V | 12V | 12V |
| Chain Size | 6mm | 6mm | 8mm |
| Maximum Pull | 630kg | 670kg | 670kg |
| Lift Working Load | 90kg | 100kg | 100kg |
| Line Speed | 23m/min | 25m/min | 25m/min |
| Current Absorption | 60A | 90A | 90A |
Chain & Rope Compatibility
| Gypsy | 6 mm | 8 mm |
| Chain Supported | ISO 6 mm | ISO 8 mm |
| Chain Supported | 6 mm DIN766 | 8 mm DIN766 |
| Chain Supported | - | 5/16” G4 |
| Chain Supported | 3/16” BBB | 5/16” G4 |
| Rope Supported | 12 mm 3-strand | - |
