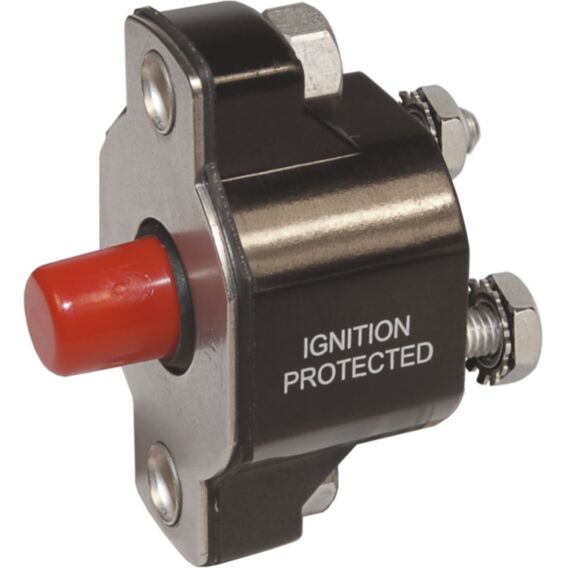

Medium Duty Push Button Reset Only Circuit Breaker - 40A
SKU
BSS2141
- Weatherproof
- Can be used as Main, Branch, or 24 hour circuit protection
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- “Trip Free” design cannot be held “ON” during fault current condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts
£54.28
RRP
Ex. VAT
| Specifications | |
|---|---|
| Amperage | 40A |
| Maximum Voltage | 120V AC 32V DC |
| Circuit Breaker Type | Thermal trip, manual push-button reset only |
| Terminal Stud Torque | 30 in-lb (3.39 Nm) |
| Interrupt Capacity* | 3000A @ 120V AC 5000A @ 32V DC |
| Minimum Operating Temperature | -54° C |
| Maximum Operating Temperature | 74° C |
| Mounting Screw Thread | #8-32 |
| Terminal Stud | #10-32 Stainless Steel |
| Weight | 0.16lb (0.07 kg) |
*The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage.
