Max Prop Anode
Max Prop Anode:
The zinc Maxi Prop anodes are available in 63,70 and 83mm diameter sizes
The aluminium Maxi Prop anodes are available in 63mm and 70mm diameter sizes
Maxi Prop
63mm Diameter
|
Material: |
Aluminium or Zinc |
|
Water Type: |
Brackish/Salt water (Aluminium), Salt Water (Zinc) |
|
Weight (kg): |
0.11 (Aluminium), 0.27 (Zinc) |
|
Suitable Propeller Shafts: |
3/4” to 1-1/8” and 22mm to 28mm |
|
Mounting holes (centre to centre): |
46mm |
|
Screws: |
63/70mm (large), 5mm diameter, 20mm long, 4mm hex wrench |
|
Suitability: |
Fits 2001 and older 63mm hubs (non-circular in diameter) |
70mm Diameter
|
Material: |
Aluminium or Zinc |
|
Water Type: |
Brackish/Salt water (Aluminium), Salt Water (Zinc) |
|
Weight (kg): |
0.16 (Aluminium), 0.40 (Zinc) |
|
Suitable Propeller Shafts: |
1-1/4” to 1-3/8” and 30mm to 28mm |
|
Mounting holes (centre to centre): |
50mm |
|
Screws: |
63/70mm (large), 5mm diameter, 20mm long, 4mm hex wrench |
|
Suitability: |
Fits 2001 and older 70mm hubs (non-circular in diameter) |

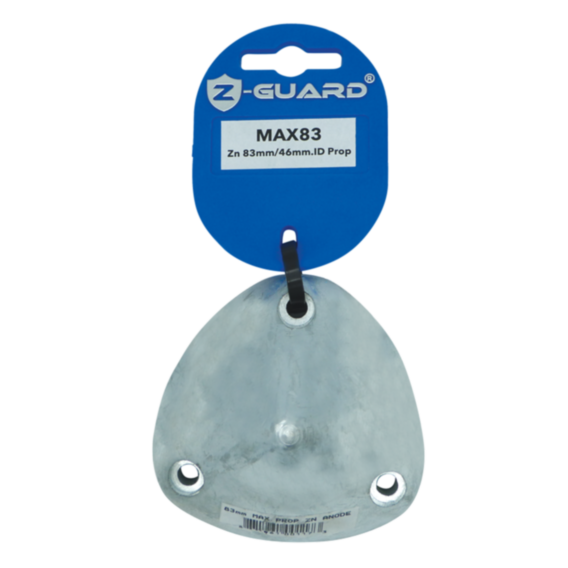

83mm Diameter
|
Material: |
Zinc |
|
Water Type: |
Salt Water |
|
Weight (kg): |
0.79 |
|
Suitable Propeller Shafts: |
1-1/2” to 1-3/4” and 38mm to 40mm |
|
Mounting holes (centre to centre): |
50mm |
|
Screws: |
83/100mm (large), 6mm diameter, 25mm long, 5mm hex wrench |
|
Suitability: |
Fits 2003 and older 83mm hubs |
