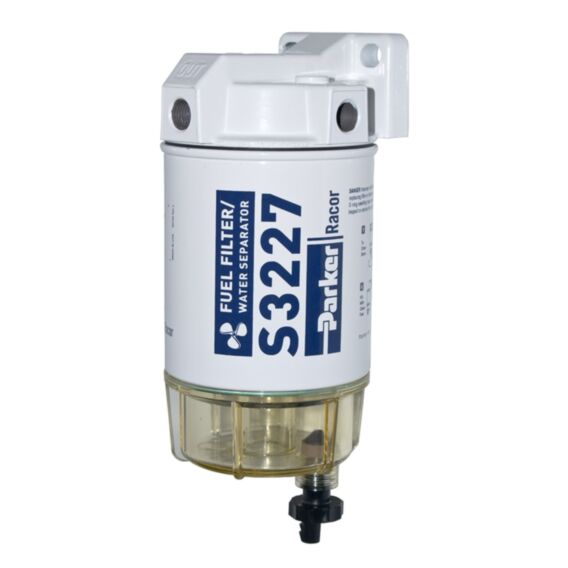

By effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust, the Parker Racor Marine Spin-on Series Fuel Filter Water Separators provides maximum protection of modern marine diesel and gasoline engines.

The mounting head and filter body are protected with a durable electrostatically applied powder coating for superior corrosion resistance. This product is easy to service and features a reusable clear engineered plastic contaminant collection bowl.

Product Specifications

• Port Size: 1/4”-18 NPTF
• UL Certification: No
• Bowl Material: Clear Engineering Plastic
• Micron Rating: 98% @ 10 Micron
• Filtered Medium: Gasoline
• Mounting Type: Bracket Included
• Clean Pressure Drop: 0.6 psi, 4.19 kPa
• Integral Primer Pump: No
• Compatible Element: S3227 = 10 micron | S3228SUL = 2 micron
• Filter Element Type: 10 Micron Aquabloc Spin-on
• Height: 9.4” | 23.9cm
• Width: 4” | 10.2cm
• Depth: 4” | 10.2cm
• Weight: 2.0lb | 0.5kg
• Maximum Operating Pressure: 7 psi, 48.3 kPa
• Head Material: Power Coated Aluminium Alloy
• Number of Ports: 2 Inlet / 1 Outlet
• Operating Temperature: -40 to 250°F, -40 to 121°C
• Maximum Fluid Temperature: 190.0°F, 88.0°C
• Flow Rate: 60 gph / 227 lph
