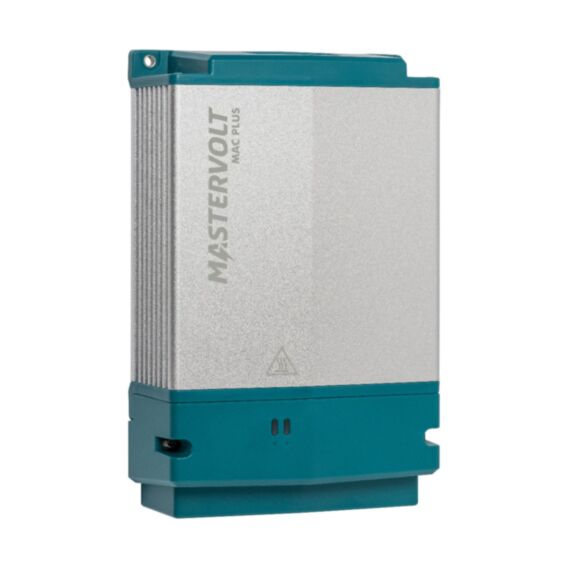

MAC Plus Waterproof Series - 48V &36V DC-DC Converters

SKU
MAC Plus Waterproof Series - 48V &36V DC-DC Converters

The Mac Plus Waterproof  models offer an IP67-rated, allowing for installation in unenclosed environments where exposure to the elements is likely. Ideal for fishing boats, trailers, and similar applications, they also incorporates a new touch-safe cover to protect connections and a sleek, robust aluminium housing to further enhance resilience and reliability. Additionally, these models offer new CV Power Control mode. This exclusive feature is an optional setting that enables the Mac Plus to maintain a constant voltage (“CV”) on the starter battery, ensuring it is never drained and keeping the system operating smoothly in situations where input current may be limited.

As low as £1,409.37

Key Features

  • IP67 waterproof construction for exposed installations
  • Bi-directional technology to charge two battery banks
  • MasterBus, CZone and NMEA 2000 compatible, for intelligent system monitoring and control
  • Parallel operation to obtain charging capacities over 100 Amps
  • Temperature compensation and voltage sense for an optimal charging result
  • Fanless design for silent operation
  • Suitable for all battery chemistries, including Lithium
  • Even charges fully depleted batteries
  • Engine run detection protects starter battery
  • Heavy duty connections for easy installation and quick set up via DIP switches
  • Robust aluminum housing for superior durability
Part Number Voltage Amps
81204105 48/12v 50A
81204205 12/48v 15A
81204305 48/24v 30A
81204405 24/48v 15A
