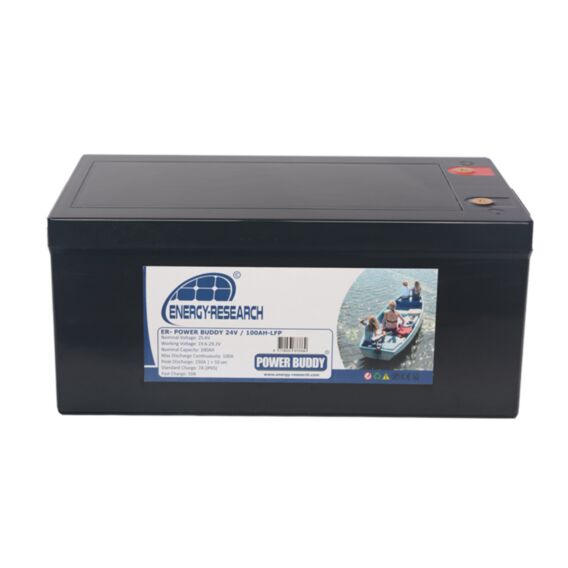

Lithium Battery LiFePO4 100ah
• Lithium Battery (LiFePO4)
• IP65 - waterproof design for life at sea.
• App to check the battery status is available to download on your smartphone
• 2,000 charging cycles
• The BMS is programmed to allow a discharge of 100%, far exceeding the discharge possibilities of AGM and Gel batteries.
BMS ensures that you cannot damage the battery by over-discharging and thereby risking the life span of the battery.
• Strong, compact, super light and safe
• Wide range of uses including trolling motors, outboard engines, caravans, lighting etc.
• Use up to 2 in parallel for even more capacity.
• Our intelligent chargers make charging quick and easy. (sold separately).
• Integrated USB port for rapid device charging (12v version only)
• Includes carry handles for easy transportaƟ on
• High tolerance to long-term vibrations
• Wide range of working temperatures (-15°C to 65°C)
|
100ah |
12v |
24v |
36v |
|
App + Bluetooth |
Yes |
Yes |
Yes |
|
Battery Type |
LiFePO4 |
LiFePO4 |
LiFePO4 |
|
Casing Protection |
Yes |
Yes |
Yes |
|
Cycles |
2000 |
2000 |
2000 |
|
DOD |
100% |
100% |
100% |
|
Full Charge Voltage |
14.6V |
29.2V |
43.8V |
|
In Series |
no |
no |
no |
|
Max Charge Current |
60AMP |
60AMP |
60AMP |
|
Max Continuous Discharge Current |
120AMP |
100AMP |
120AMP |
|
Nominal Voltage |
12.8V |
25.6V |
38.4V |
|
Parallel |
2 |
2 |
2 |
|
Size (LxWxH) with package (UN casing size) |
530*320*350mm |
620*380*290mm |
620*380*290mm |
|
Size (LxWxH) without package standard charge |
325*170*235mm 10AMP |
520*270*230mm 7AMP |
520*270*230mm 8AMP |
|
Usable WATTS |
1280WH |
2560WH |
3840WH |
|
Weight with package |
+/-12KGS |
+/-24KGS |
+/-32KGS |
|
Weight without package |
+/-10.5kgs |
+/-22kgs |
+/-29kgs |
