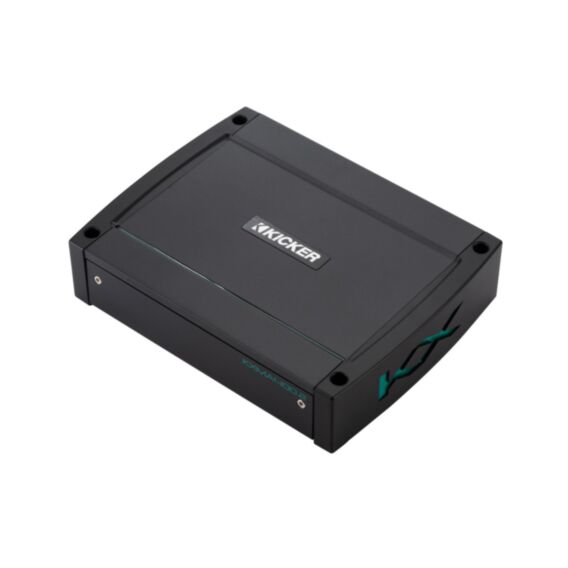

KXM Amplifiers are built for fun, no matter where you go. Power, speaker and input connections are gasket-sealed, as is the control cover hiding the settings, creating a water-resistant barrier to key components.
KickEQ+ delivers as much as an 18dB of extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection. A full-range RCA output allows you to easily add another amplifier without running a new signal cable to the radio.
SPECIFICATION
RMS Power
- 14.4V 4 Ohm = 1% THD+N : 100 W x 2
- 14.4V 2 Ohm = 1% THD+N : 200 W x 2
- 14.4V 4 Ohm bridged = 1% THD+N : 400 W x 1
- Length - 9 9/16" (24.4 cm)
- Height - 2 1/8" (5.5 cm)
- Width - 8 5/16" (21 cm)
- Frequency Response - 10-20K Hz (+/- 1 dB)
- Signal-to-Noise Ratio - >95dB A-weighted, re: rated power
- Input Sensitivity - 250mV-10V
- Crossover - Selectable Electronic
- KickEQ Boost - variable to 0-18dB, centered at 40Hz
