The ‘Slim’ water heaters have been designed especially for use on
board boats where space is at a premium. The ‘Slim’ range is smaller

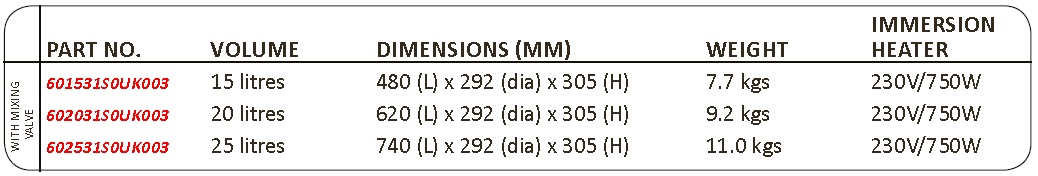

in diameter than previous Isotemp models and are available in three
sizes, 15, 20 or 25 litres. Made from the highest quality stainless steel
(AISI316), the Isotemp ‘Slim’ range have a higher temperature retention
than most water heaters thanks to the quality of its insulation. This
means that the temperature loss is less than 0.5ºC per hour, keeping
water hotter for longer.
The water is heated up by a large internal coil for engine water or by an
immersion heater for 230V/800W. Both the engine coil and electrical
heater are located at bottom of the unit, which means that the entire
contents will be heated. A safety valve and a thermostat-mixing valve
is supplied as standard on the part numbers ending 003. The Isotemp
‘Slim’ range is also supplied with strong, adjustable fixing brackets,
a cable with plug for 230(115)V and all appropriate connections.
Isotemp “Slim” may be installed both in vertical or horizontal position.
