Isotemp Slim Water Heaters

Isotemp
SKU

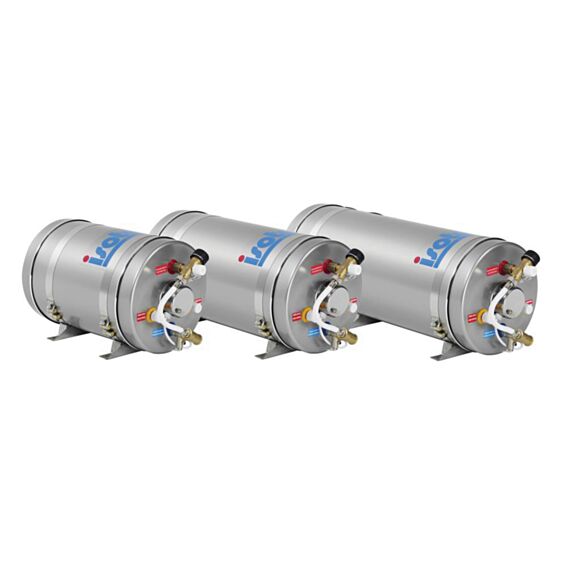

Isotemp Slim Water Heaters

The ‘Slim’ water heaters have been designed especially for use onboard boats where space is at a premium. The ‘Slim’ range is smaller in diameter than previous Isotemp models and is available in three sizes, 15, 20 or 25 litres.

Made from the highest quality stainless steel (AISI316), the Isotemp ‘Slim’ range has higher temperature retention than most water heaters thanks to the quality of its insulation. This means that the temperature loss is less than 0.5ºC per hour, keeping the water hotter for longer.


The water is heated up by a large internal coil for engine water or by an immersion heater for 230V/800W. Both the engine coil and electrical heater are located at bottom of the unit, which means that the entire contents will be heated.

A safety valve and a thermostat-mixing valve is supplied as standard on the part numbers ending 003. The Isotemp ‘Slim’ range is also supplied with strong, adjustable fixing brackets, a cable with a plug for 230(115)V and all appropriate connections.


Isotemp “Slim” may be installed both in a vertical or horizontal position.

As low as £620.65

VOLUME

DIMENSIONS (MM)

WEIGHT

IMMERSION HEATER

15 litres

480 (L) x 292 (dia) x 305 (H)

7.7 kgs

230V/750W

20 litres

620 (L) x 292 (dia) x 305 (H)

9.2 kgs

230V/750W

25 litres

740 (L) x 292 (dia) x 305 (H)

11.0 kgs

230V/750W
