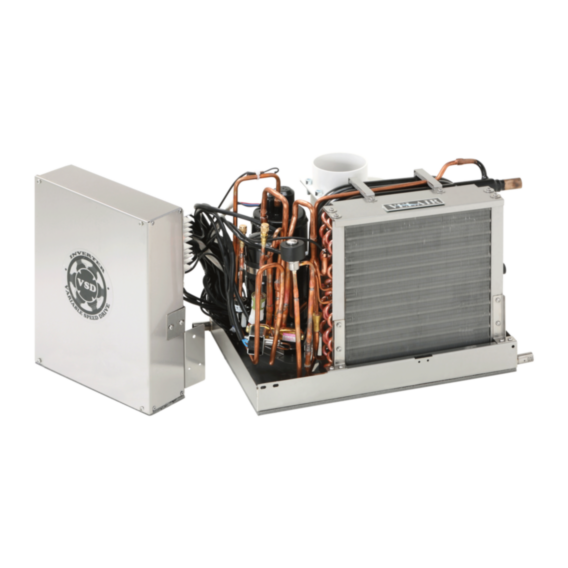

Velair i10 VSD SMART Self-contained-VSD air conditioner provides the best of the existing technology: compressor with brushless DC motor and inverter that constantly controls speed and delivered cooling power (Variable Speed Drive); reverse blade brushless fan; electronic expansion valve; R32 refrigerant.
The compressor continuously changes its running speed depending on the ambient and set temperature. The compressor operates at maximum power to cool rapidly the cabins, but reaching the set temperature reduces the power and electric consumption. In this way, it maintains the optimal comfort level with minimum consumption. The inverter works between 20 and 100 Hz.
Self-contained-VSD VELAIR units meet EMC 2004/108/EC directives.
|
Inverter VSD - Variable Speed Drive |
YES |
|
Voltage/Phase/Cycle |
1 PH 230V - 50/60 HZ; 1 PH 150V - 50/60 HZ |
|
Cooling capacity range |
4.000 - 10.000 BTU/H |
|
Heat pump |
SI |
|
Maximum input power cooling |
0,64 KW / 2,9 A |
|
Input power ECO mode |
0,21 KW / 0,95 A |
|
Min seawater flow |
12 L/MIN |
|
Maximum air flow |
400 M3/H |
|
Air exit duct (for max capacity) |
1 X Ø 100 MM - 1 X Ø 3.9” |
|
Min. opening for return air grill |
400 CM2 |
|
Min. opening for supply air grill |
250 CM2 |
|
Refrigerant |
R32 |
|
Control panel cable length |
8 M |
|
Width - including electrical box |
571 MM - 22.5” |
|
Height |
320 MM - 12.6” |
|
Depth |
323 MM - 12.7” |
|
Weight |
25 KG - 55.1 LBS |
|
Working limits: SW summer mode |
> +5°C/+41°F |
|
Working limits: SW winter mode |
< +40°C/+104°F |
|
|
COMPACT i10 VSD SMART |
|
Voltage/Phase/Cycle |
1 PH 230V - 50/60 Hz; 1 PH 150V - 50/60 Hz |
|
Cooling capacity |
4.000 - 10.000 BTU/h |
|
Maximum input power cooling |
2.9 A @230V; 6.0 A @115V |
|
Protection |
10A (230/115V) |
|
Wire size (minimum) |
2,5 mm2 (230V); 4 mm2 (115V); |
|
Maximum air flow |
400 m3/h |
|
Min. opening for return air grill |
400 cm2 |
|
Min. opening for supply air grill |
250 cm2 |
|
Min. seawater flow |
12 l/min |
|
Dimensions mm (") LxHxP (including electrical box) |
571x320x323 (22.5x12.6x12.7) |
|
Weight kg (lbs) |
25 (55.1) |
