Hydraulic Steering Kit for Outboards up to 175 Hp

SKU
K175
✕
Size (Cm) XS S M L XL XXL
Height 155-160 160-165 170-175 180-185 185-190 190-195
Chest 82-86 87-91 97-101 107-111 112-116 117-121
Waist 66-70 71-75 81-90 91-95 96-100 101-105

From Glydus, this packaged hydraulic steering system is designed for outboards up to 175 Hp.

£666.66
RRP Ex. VAT
Where to buy
  • Standard Wheel Turns : 6.8 Lock to Lock
  • # Hose length can be customised as per customers' request.
  • # For higher or lower number of turns, contact our technical support team

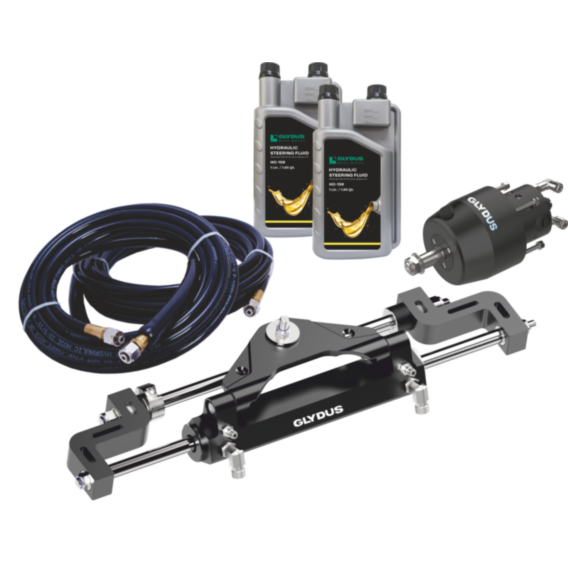

The Standard Steering Kit K175 for Single Cylinder - Single Outboard includes:

  • Helm Pump 18 cc
  • Cylinder for Outboards up to 175 Hp
  • Hydraulic Steering Fluid
  • Hydraulic Hose 7.5m with factory crimped hose connectors



Glydus K175: Single Engine Application Guide

Before selecting a cylinder from this application guide, please verify the model year of your outboard to ensure you are choosing the correct cylinder for your boat.

Note - Your splashwell should be wide enough for the installation of the cylinder. Check installation manual for space requirements.

*Note: Johnson 115 HP-2-Stroke outboards, required the tiller plate to be inverted



Manufacturer Year Model Cylinder Notes
Honda 1992-Date 30-50 HP 4-Stroke OC175 See note A
Honda 1996-Date 75-90 HP 4-Stroke OC175
Honda 2015-Date 100 HP 4-Stroke OC175
Honda 1998-2010 115-130 HP 4-Stroke NA
Honda 2003-Date 135-175 HP 4-Stroke OC175
Honda 2010-Date 115 HP 4-Stroke OC175
Johnson / Evinrude* 1991-Date 40-175 HP Inc. E-Tec OC175 See note A
Johnson / Evinrude* 1997-Date 115 HP Ficht OC1751
Johnson / Evinrude* 2017-Date 75-115 HP Ficht OC175 See note C
Johnson / Evinrude* 1998-Date 40-140 HP 4-Stroke OC1751 Requires Spacer Kit SP1, *Note A
Mercury / Mariner 1984-Date 75-115 HP OC175 See note C
Mercury / Mariner 1998-2007 40-60 HP 2-Stroke OC175N Requires Spacer Kit SP1, *Note A
Mercury / Mariner 2008-Date 40 HP 4-Stroke OC350N Requires Spacer Kit SP1
Mercury / Mariner 2008-Date 60 HP 4-Stroke OC175 See note A
Selva 2000-Date 25-70 HP 4-Stroke OC175N Requires Spacer Kit SP1, *Note A
Selva 2000-Date 90-175 HP 4-Stroke OC175 See note 5
Selva 2011-2013 115 HP 4-Stroke OC1751
Suzuki 1986-Date 150 HP 2-Stroke OC175 See note C
Suzuki 1987-2002 115-140 HP 2-Stroke OC175 Requires Spacer Kit SP1
Suzuki 1990-2000 90-100 HP 2-Stroke OC175
Suzuki 1998-Date 40-70 HP 4-Stroke OC175 Requires Spacer Kit SP1, *Note A
Suzuki 2001-Date 90-140 HP 4-Stroke OC1751 Requires Spacer Kit SP1
Tohatsu 1990-Date 40-140 HP 2-Stroke OC-175 See note A
Tohatsu 2014-Date 60-175 HP 4-Stroke OC-175
Neander-Marine 2017-Date Dtorque 111-90 HP OC-175
Yamaha 1998-Date 40-50 HP 2-Stroke OC-175 See note A
Yamaha 1998-Date 60 HP 2-Stroke OC-175 See note B
Yamaha 1986-Date 70-90 HP 2-Stroke OC-175 Requires Spacer Kit SP1
Yamaha 1997-Date 80-175 HP 4-Stroke OC-175 See note C
Yamaha 2000-Date 25-70 HP 4-Stroke OC-175N Requires Spacer Kit SP1, *Note A
Yamaha 2011-2014 90-115 HP Inc. A Series OC-1751
Yamaha 2014-Date 90-115 HP Inc. B Series OC-175



A - To avoid problems with outboard trim and tilt, the outboard clamp brackets must be cut or ground down and the outboard should be bolted directly to the transom.

B - Steering hook Yamaha Part# 63D-48511-11JL1J-4D must be installed

C - High performance 115HP outboards and any outboard using a 4-3/4" gear case such as a COMMAND THRUST must use Glydus 3511J HP Cylinder
