Hydraulic Steering Kit for Outboards up to 115 Hp

SKU
K115
✕
Size (Cm) XS S M L XL XXL
Height 155-160 160-165 170-175 180-185 185-190 190-195
Chest 82-86 87-91 97-101 107-111 112-116 117-121
Waist 66-70 71-75 81-90 91-95 96-100 101-105

From Glydus, this packaged hydraulic steering system is designed for outboards up to 115 Hp.

£499.99
RRP Ex. VAT
Where to buy
  • Standard Wheel Turns : 5 Lock to Lock
  • # Hose length can be customised as per customers' request.
  • # For higher or lower number of turns, contact our technical support team

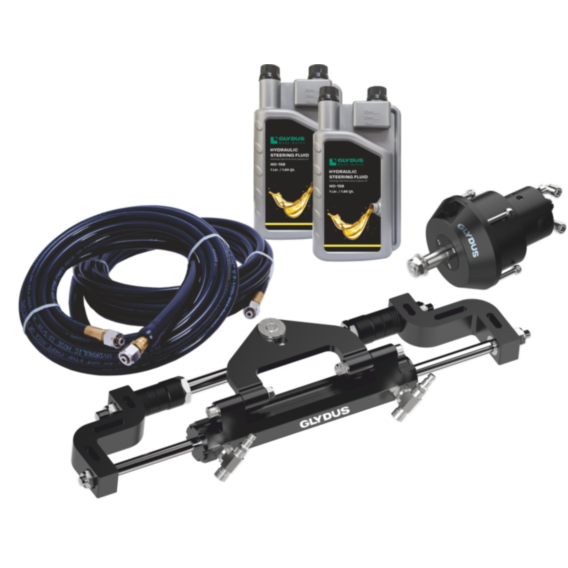

The Standard Steering Kit K115 for Single Cylinder - Single Outboard includes:

  • Mid Mount Helm Pump 18 cc
  • Cylinder for Outboards up to 115 Hp
  • Hydraulic Steering Fluid
  • Hydraulic Hose 5.0m with factory crimped hose connectors

Before selecting a cylinder from this application guide, please verify the model year of your outboard to ensure you are choosing the correct cylinder for your boat.

*Note - Your splashwell should be wide enough for the installation of the cylinder. Check installation manual for space requirements.

**Note - Johnson 115 HP-2-stroke outboards required the tiller plate to be inverted

Manufacturer Year Model Cylinder Notes
Honda 1992-Date 30-50 HP 4-Stroke OC-115U See Note A
Honda 1996-Date 70-90 HP 4-Stroke OC-115U
Honda 2015-Date 100 HP 4-Stroke OC-115U
Honda 1998-2010 115 HP 4-Stroke NA
Honda 2003-Date 135-115 HP 4-Stroke OC-115U
Honda 2010-Date 115 HP 4-Stroke OC-115U
Johnson / Evinrude* 1991-Date 40-115 HP 4-Stroke OC175 See Note A
Johnson / Evinrude* 1997-Date 115 HP Ficht OC1751 See Notes C
Johnson / Evinrude* 2017-Date 75-115 HP Ficht OC1751 Requires Spacer Kit SP1, Note A*
Johnson / Evinrude* 1998-Date 40-115 HP 4-Stroke OC1751
Mercury / Mariner 1984-Date 75-115 HP OC-115U See Note C
Mercury / Mariner 1998-2007 40-60 HP 2-Stroke OC175N Requires Spacer Kit SP1, Note A*
Mercury / Mariner 2008-Date 40 HP 4-Stroke OC350N Requires Spacer Kit SP1
Mercury / Mariner 2008-Date 60 HP 4-Stroke OC-115U See Note A
Selva 2000-Date 25-70 HP 4-Stroke OC175N Requires Spacer Kit SP1, Note A*
Selva 2000-Date 90-115 HP 4-Stroke OC-115U See Note 5
Selva 2011-2013 115 HP 4-Stroke OC1751
Suzuki 1986-Date 150 HP 2-Stroke OC-115U See Note C
Suzuki 1987-2002 115 HP 2-Stroke OC-115U Requires Spacer Kit SP1
Suzuki 1990-2000 90-100 HP 2-Stroke OC-115U
Suzuki 1998-Date 40-70 HP 4-Stroke OC-115U Requires Spacer Kit SP1, Note A*
Suzuki 2001-Date 90-115 HP 4-Stroke OC1751 Requires Spacer Kit SP1
Tohatsu 1990-Date 40-114 HP 4-Stroke OC-115U See Note A
Tohatsu 2014-Date 60-115 HP 4-Stroke OC-115U
Neander Marine 2017-Date Dtorque 111-90 HP OC-175
Yamaha 1998-Date 40-50 HP 2-Stroke OC-175 See Note A
Yamaha 1998-Date 60 HP 2-Stroke OC-175 See Note B
Yamaha 1986-Date 70-90 HP 2-Stroke OC-175 Requires Spacer Kit SP1
Yamaha 1997-Date 80-115 HP 4 Stroke OC-115U See Note C
Yamaha 2000-Date 25-70 HP 4 Stroke OC175N Requires Spacer Kit SP1, Note A*
Yamaha 2011-2014 90-115 HP Inc. A Series OC1751
Yamaha 2014-Date 90-115 HP Inc. B Series OC-115U



A. To avoid problems with outboard trim and tilt, the outboard clamp brackets must be cut or ground down and the outboard should be bolted directly to the transom.

B. Steering hook Yamaha Part # 63D -48511-11JL1J-4D must be installed

C. High performance 115HP outboards and any outboard using a 4-3/4" gear-case such as COMMAND THRUST must use Glydus 3511J HP Cylinder
