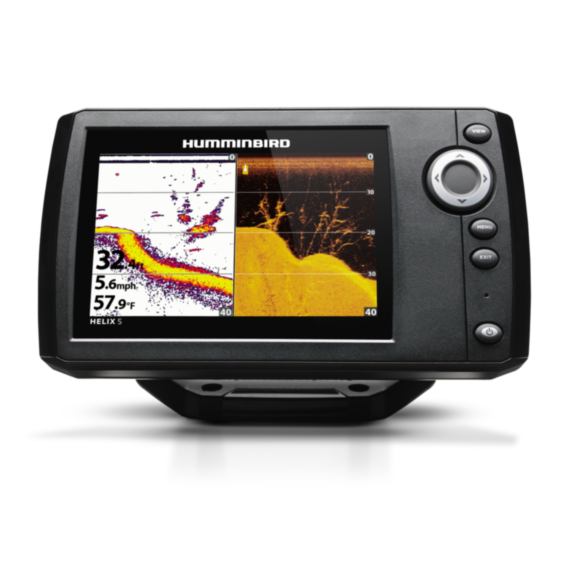

HELIX 5 DI G2
SKU
410200-1
If fishing is in your DNA, there's no such thing as "too early" or "too far." High expectations go with the territory. The HELIXⓇ5 Series answers the call with an uncompromising, 5" widescreen display. This HELIX 5 DI G2 model features Down Imaging, DualBeam PLUS and SwitchFire.
£291.66
RRP
Ex. VAT
- Down Imaging: Get a clear view of what's happening below your boat with Down Imaging. As you patrol the water, you'll watch timber, brush, bridge pilings, rocks and any other structure pop with great detail.
- SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.
- Dual Beam PLUS Sonar: Two beams combine for great detail and a generous coverage area, helping you identify fish, structure and contours. Use the narrow beam for high-accuracy returns of fish, structure, detail and the bottom profile. Opt for the wide beam when you want a larger search area. You can view the beams separately, side-by-side or blended together for the complete picture. Your coverage area will be equal to your depth.
- 1-Year Limited Warranty
| Item Number | 410200-1 |
| Series | HELIX |
| Display Size - Diagonal | 5" |
| Display Pixel Matrix | 800H x 480V |
| Sonar-Standard | Down Imaging, DualBeam PLUS |
| Sonar-Coverage | 16°, 28°, 45° & 75° @ -10dB |
| Sonar-Frequencies Supported | 200/455/800 kHz |
| Depth-Sonar | 600 ft (standard transducer) |
| Depth-Down Imaging | 350 ft |
| Interface | Keypad Control |
| Features | Down Imaging |
| Memory Card Slot | None |
| Compatible With | AIS, AutoPilot |
| Power Draw | 615 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen SnapShot | Not Supported |
| Sonar Recording | Not Supported |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 7.55" W x 4.64" H x 3.3" D |
| Mount-Optional Size | 7.55" W x 4.28" H x 1.13" D |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Not Supported |
| GPS Trackplotting | Not Supported |
| LakeMaster Compatibility | No |
| Coast Master Compatibility | No |
| Navionics Gold/HotMaps Compatibility | No |
| Navionics Platinum + Compatibility | No |
| Platinum Compatibility | No |
| Heading Sensor GPS Compatibility | No |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Display Colors Grayscale | 16-Bit |
| Display Size | 5" - 7" |
| Speed | Optional |
| Temperature | Built-In |
| Temperature Alarm | Yes |
| Temperature Graph | No |
| Transducer Included | XNT 9 DI T |
| HDMI Compatible | No |
| MEGA Live Compatibility | No |
