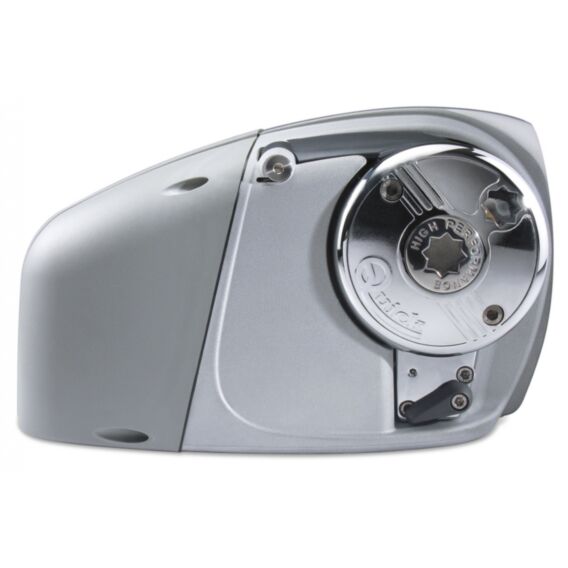

Hector HC3 series 1512D Windlass 1500W 12V 10mm D

The Quick HC3 Hector 1012 horizontal windlass is suitable for boats from 10m to 13m (33 to 43ft). The on-deck windlass is easy to install with an Aluminium base, housed in a Composite jacket, making it well protected and durable. Supplied with pressure lever control and a built-in manual emergency recovery system, anchoring has never been easier. The Quick windlass features an 8mm (5/16") gypsy which is suitable for 8mm DIN766, 8mm ISO, 5/16" G4 and 5/16" BBB chain, as well as 1/2" (12.7mm), 9/16" (14.2mm) and 5/8" (15.8mm) rope.

• Horizontal on-deck windlasses
• Corrosion-resistant composite casing, anodised aluminium base
• Manual Free-Fall System
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Supplied with pressure lever
• Integrated solenoids unit
• Emergency manual lift system
• Manual Free-Fall system

• 12V 1500W IP66-rated water ingress protection motor with Integral Contactor (Solenoid)

• 100% on-deck unit - no parts in the chain locker
• 24V and warping drum options also available, please enquire

Included in the kit:

On-deck motor, solenoid (control box) and gearbox windlass unit, Technopolymer handle, windlass panel switch, 100A hydromagnetic circuit breaker, assembly bolts and screws, drilling template and user manual.
