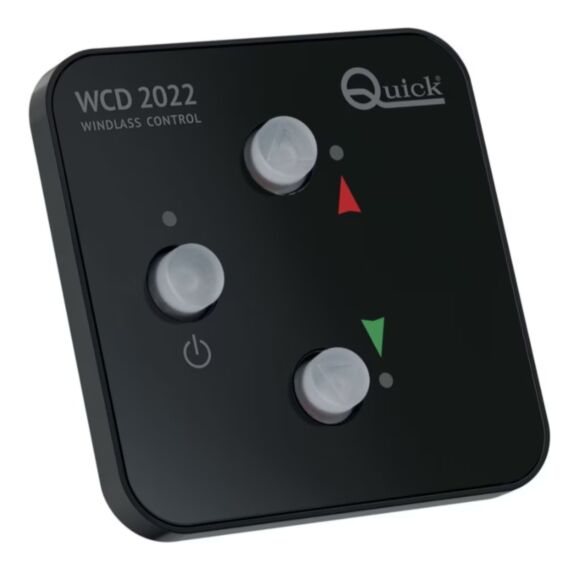

WCD2022 WINDLASS CONTROL BOARD WITH BUTTONS

Supply Voltage: 8 - 31V DC
Current Capacy: Max 4A
Current Consumption at rest: 10mA
Operating Temperature: -20°C - 70°C
Protection Rating: IP66
Dimensions: 78 x 78 x 22mm (3"5/64 x 3"5/64 x 55/64")
Weight: 80g (0.17 lb)

Windlass remote control panel for on-off system control of windlasses with a simple and intuitive user interface. Easy to install muliple controls can be added in parallel to provide multiple control stations for operatin. Features protection against reverse polarity output short circuit and interrupton of the windlass wiring. The panel also provides acoustic signals that can be deactivated if not required.
