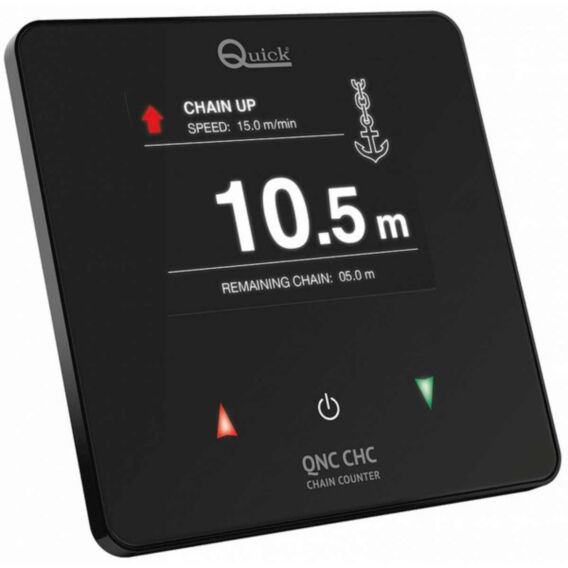

main product photo

Chain counter panel - 3.5" high brightness colour graphic display

Quick
SKU
FNQNCCHCF000B00

The Quick QNC CHC is a complete and reliable tool to remotely operate a windlass and check the length of the lowered chain.

The lowered chain length is displayed on the IPS 3.5" high-brightness colour display in metres, feet and fathom.

The panel surface is constructed from black tempered glass with touch control function keys.

£419.46
RRP Ex. VAT
Where to buy

The Quick QNC CHC is a complete and reliable tool to remotely operate a windlass and check the length of the lowered chain.

The lowered chain length is displayed on the IPS 3.5" high-brightness colour display in metres, feet and fathom.

The panel surface is constructed from black tempered glass with touch control function keys.



Key Features

  •  Automatic descent function
  •  Up alarm function
  •  Anchor weighing function in case of sensor failure
  •  Windlass management with auto free fall
  •  High brightness 3.5” colour graphic display
  •  Multilingual user interface
  •  Power supply 12/24 Vdc
  •  Functioning over a wide range of environmental temperatures
  •  CAN bus Communication Interface

Product contents:

  • Chain counter QNC CHC
  • Protective cover
  • Chain counter sensor kit
  • Screws for fastening
  • Gasket
  • Power supply cable and I/O 0.5 m
  • Drilling template
  • Installation and user manual
  • Conditions of Warranty



Specification Details
Height Description 115mm (4-17/32"), with Cover: 120mm (4-23/32"), Behind Surface: 99.4mm (3-29/32")
Operating Temperature -20°C to +70°C (-4°F to +158°F)
Voltage Description 12V - 24V DC
Weight 270g (320g with protective cover)
Width 115mm (4-17/32"), with Cover: 120mm (4-23/32"), Behind Surface: 99.4mm (3-29/32")
Brand Quick
IP Rating IP67
Contents Chain counter QNC CHC, Protective cover, Chain counter sensor kit, Screws for fastening, Gasket, Power supply cable & I/O 0.5 m, Drilling template, Installation & use manual, Conditions of Warranty
Dimensions Distance between fixing hole centres: 96.2mm (3-25/32")
Amps Description 160 mA absorbed when idling
Depth Above Surface: 6.2mm (15/64"), with Cover: 8.9mm (11/32"), Behind Surface: 25.8mm (1-1/64")
