Product Information

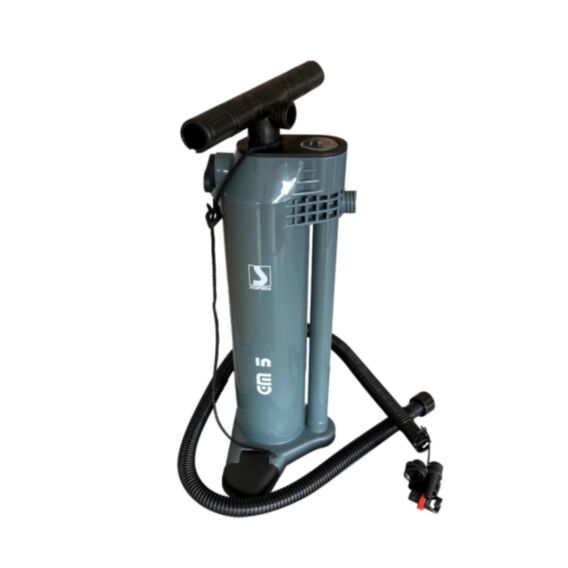

Manufactured from recycled and recyclable plastic, with the inner tube consisting of CIRCAL® aluminium, which is composed of 75% recycled materials, the Bravo GM5 Hand Pump is both reliable and efficient.

Requiring less effort to inflate, this pump also eliminates hose kinking during inflation thanks to the air outlet being positioned on the pump body itself. The feet at the base of the pump are foldable, and the handle can be disassembled to save space during storage and transport. The Bravo GM5 (GM1S0000) is supplied with adaptors for various inflation valve types and a high-quality 1.5m hose (LDPE + EVA).

Product Instructions

TO INFLATE

• The pump is equipped with standard nozzles supplied in the package.

• Connect the hose to the front side of the pump and ensure the "Mode" lever on the rear side is set to the "DOUBLE ACTION" position as indicated on the pump.

• Connect the pump to the inflatable product.

• Tighten the knobs on the handle and open the feet at the base for greater stability.

• Start pumping. When resistance increases, turn the "Mode" lever on the rear side of the pump 180 degrees counter-clockwise to the "SINGLE ACTION" position as indicated on the pump.

• Continue pumping until the desired pressure is reached.

TO DEFLATE

• Connect the hose to the handle port and ensure the "Mode" lever on the rear side of the pump is set to the "DOUBLE ACTION" position as indicated on the pump.

• Connect the pump to the inflatable product.

• Continue pumping until the inflatable product is fully deflated.
