NMEA2000® Universal Engine Gateway / Monitor

Key Features

• Converts Analogue signals and J1939 to NMEA2000®
• NMEA2000® output for use with other onboard devices
• Display options include Engine, Fuel, Trim, Nav, Alarms etc
• Intuitive “on screen” User and Set-Up menus

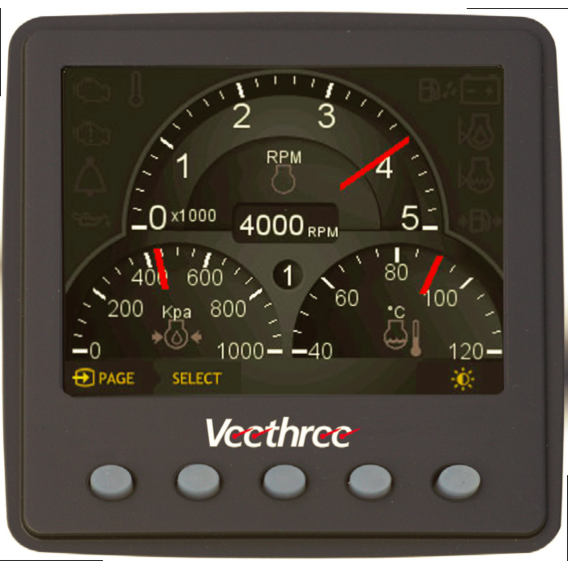

The Veethree Universal Engine Gateway/Monitor is designed to be used with all engine types
converting, displaying and re-transmiting NMEA2000 engine data measured from traditional
Analogue engine sender signals or from J1939 / NMEA2000.
As an analogue to NMEA2000 “gateway” the EGM replaces the need for expensive dedicated
converter modules and provides the user the advantage of a full colour interactive engine
monitor screen that can be used in place of or alongside traditional gauges.
The EGM is driven by CANvu software which provides selectable icon based display layouts;
including a comprehensive multi-language text based fault warning and acknowledgement
system and a series of “hidden until lit” alarm lamps.
The sunlight readable full colour display is fully waterproof and has a built-in day/night mode
to enhance the viewing experience under all conditions.
