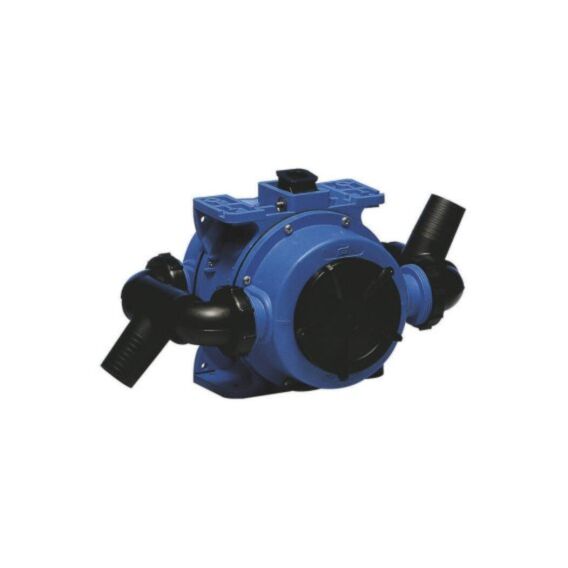

Double Action Diaphragm Pump 1.5L

Plastimo
Plastimo
SKU
11724
  • The cover alone: 12611
  • Spare handle, length 40 cm: 14315
  • Hose diameter 38 mm: 66896
  • Handle stowage clips : 16702
  • Screw cap for the back part of pump: 18040
  • Spare diaphragm: 16217
  • Set of spare valves (input/output): 16213
  • Watertight gasket with cover complying with IOR rule: 14263
£179.91
RRP Ex. VAT
Where to buy

Corrosion, electrolysis and fuel-resistant bilge pumps. Of rugged construction, they produce high-capacity output with the convenience of many mounting positions (see drawings).Photo: CKit of 2 straight outlets (a), Kit of 2 outlet elbows (b): Outlets supplied with the pump.Weight: 1,840 kgCapacity output at 1 m height: 58.5 L/min*Maximum lift: 3 mHose diameter: 38 mm*± 0,05 L (as per ISO 15083: 45 strokes/min at a 1 m head, 10 kPa pressure). The double action pump is equipped with outlet elbows, swivelling at 220°, thus allowing all mounting positions and reducing the clearance required (290 mm to 400 mm maximum). The outlet elbows are screwed and fitted with an O-ring for perfect water tightness and added safety (quick-release facility). Straight outlets 17491 and elbows 17492 can also be mounted on pump C, which allows pumping in two different locations on the boat while having only one waste water outlet.



Article weight (Kg):2

Article length (Cm):23

Article depth (Cm):37.5

Article height (Cm):20

Article volume (Cm3):17250

Hazardous article: no

Bulky article: no

Sales unit: U

Flow:58.5 L/min

Model: Double effect
