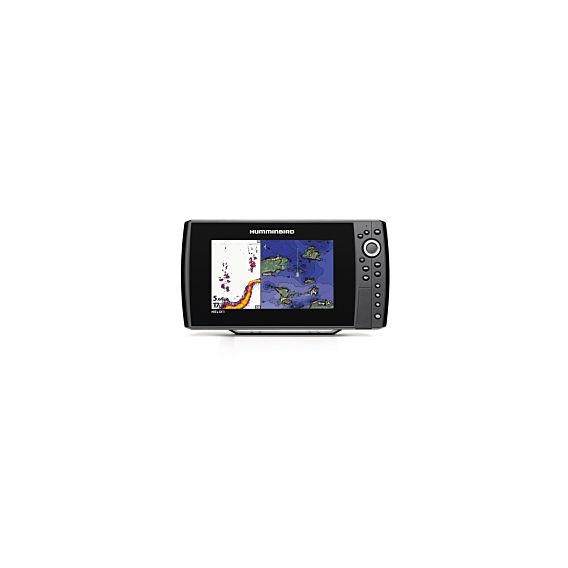

DISCONTINUED NO REPLACEMENT (HELIX 9 SONAR GPS Fishfinder/Plotter 9in)

THIS ITEM IS NOW DISCONTINUED WITH NO REPLACEMENT

The HELIX 9 Sonar GPS features a super bright LED backlit 9" display. This wide screen 800H x 480V colour display provides bright, crystal-clear images for easy viewing in harsh sunlight. The DualBeam PLUS sonar with SwitchFire has 4000 watts PTP power output and GPS Chartplotting and Ethernet networking capabilities. Includes a unit cover, dual card reader and Instant Access preset buttons.

*Optional 50 kHz transducers available for extreme deepwater use

*To obtain 1000 watts, optional deepwater transducer required

Features:

360 Imaging Compatible (available separately): We have you surrounded. 360 Imaging allows you to isolate your sweep, see 5 preset views or see all around you.

SwitchFire Sonar: Take command of how your sonar returns appear with our Clear and Max Modes.

Dual Beam Plus Sonar: Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.

Internal GPS: GPS antenna built into the head unit

Upgradable Software: Access software updates to enhance the performance of your Humminbird unit

Dual SD Card Slots: Use one slot for advanced cartography and the other to save screenshots, sonar recordings and waypoints.

HD Display: Provides bright, crystal-clear images for easy viewing in harsh sunlight.

Ethernet: Rig up the ultimate fishing system. Use our 5-Port Ethernet switch to link together multiple Humminbird head units or share transducers.

HD Radar: In darkness and fog, busy channels and treacherous weather, situational awareness is the name of the game.

AIS: Humminbird's state of the art AIS technology takes the risk and guesswork out of navigating high-traffic channels or low-visibility seas.

Autopilot: Never deviate from your route with the precise control and proven performance of your Humminbird Autopilot System.

iPliot Link: i-Pilot Link is an integrated GPS Trolling System available on select Minn Kota Terrova and PowerDrive V2 motors which enable your motor and Humminbird to communicate.

Autochart Live: Make a map where there is no map. Our patent pending AutoChart Live allows you to create digital, detailed maps live and on the water. You can also use it to enhance your existing charts.

NMEA 2000: Get an at-a-glance view of fuel consumption, engine performance and other vessel data.

Wireless: Take wireless control of your Humminbird with our new Bluetooth Remote and Dongle (Sold separately)

• Display Size - Diagonal: 9"
• Display Pixel Matrix: 480V x 800H
• Display Type: Color TFT
• Display Colors Grayscale: 65,000 Colors
• Sonar Standard: DualBeam PLUS
• Standard Sonar Coverage: 20° & 60° @ -10db
• Standard Sonar Frequency: 50*/83/200 kHz
• Target Separation: 2.5"
• Power Output RMS: 500 Watts
• Power Output Peak to Peak: 4000 Watts
• Depth Capability: 1500 ft & 3000 ft*
• Temperature: Built-In Transducer
• Speed: GPS Speed Included
• Backlight: LED
• Unit Size - Gimbal Mount: 13.44"W x 7.12"H x 4.20"D
• Mount A Type: Gimbal
• Unit Size - Indash Mount: 13.44"W x 7.12"H x 3.99""D
• Mounting Options: Optional In-Dash Mounting Kit
• Transducer Standard: XNT 9 20 T
• Transducer Mounting: Transom
• Power Input: 10-20 VDC
• GPS Receiver: Included
• GPS Tracking: Included
• GPS Chartplotting: Included
• Waypoints, Routes, Tracks/Points: 2,750, 45, 50/20,000
• Humminbird Mapping: Optional
• Navionics Gold/HotMaps: Optional
• Navionics Platinum+: Optional
• Platinum Capable: Optional
• C-Map 4D: Not Supported
• 360 Imaging: Optional
• i-Pilot Link: Optional
• HD Radar: Optional
• NMEA 2000: Optional
• 5 Port Expansion Module: Optional
• WeatherSense: Not Supported
• Precision GPS: Included
• Heading Sensor GPS: Optional
• PC Connect: Optional
• External GPS Receiver: Optional

• AS Interlink: Not Supported
• AIS Compatability: Optional
• SwitchFire Sonar: Included
• Screen Snap Shot: Included
• Sonar Recording: Included
• Humminbird PC: Included
• Upgradable Internal Software: Included
• Split Screen Zoom: Included
• Split Screen Bottom Lock: Included
• 3D Chart View: Included
• Large Digits View: Included
• Wide/Narrow Cone Split Screen: Included
• Custom View Selections: Included
• Custom Digital Readout: Included
• View Preset Keys: Included
• Temperature Graph: Included
• Temperature Alarm: Included
• Freeze Frame: Included
• Instant Image Update: Included
• Mark Structure on Sonar: Included
• Selective Fish ID+: Included

• Real Time Sonar: Included
• Triplog: Included
• X-Press Menu System: Included
• Card Reader Available: Yes
• # Card Slots: 2
