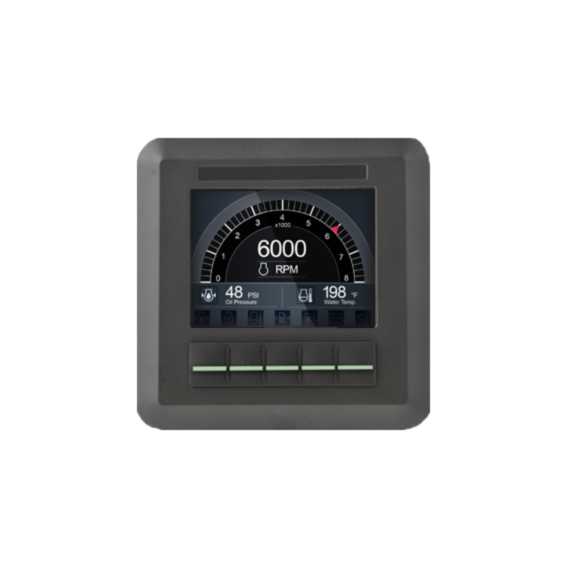

C3l Engine Monitor (low profile) 3.5" LCD / Button

Veethree

SKU

Key Features

Compatible with Multiple Engine Types/Brands
All Common Engine Parameters Shown
All Triggered Alarms Shown
Single or Twin Engine Display Modes
NMEA 2000 Gateway for Transmission to Other MFDs
IP67 All-Round Protection
Plug and Play Installation
Button Operated and Touch Screen Models Available

As low as £399.99

Details

Downloads

The range incorporates a variety of types and screen sizes from around 3″ display to a slimline 7″ display. The software is common across the range supporting inputs from analogue, J1939 and NMEA 2000 engines that can be configured via the setup menu.

The UEM software provides selectable icon-based display layouts; including a comprehensive text-based fault warning and acknowledgement system and a series of 'hidden until lit' alarm lamps.

Primary display options include parameters related to Engine Status and Alarms as well as Fuel Level, Rudder Angle, Trim, Depth, Speed and Heading. Data is available in several formats and measurement units.

The UEM includes a 'gateway' feature that converts inputs (including Analog signals, J1939 and NMEA0183 for GPS) to NMEA 2000 allowing engine data to be broadcast for display on other onboard multi-function displays.

Kit Includes

Display with Preloaded Engine Monitor Software
Protective Cover
Harness Cabling Selectable Options Either: Universal Including (J1939, NMEA2000 and Analog) or J1939 only
