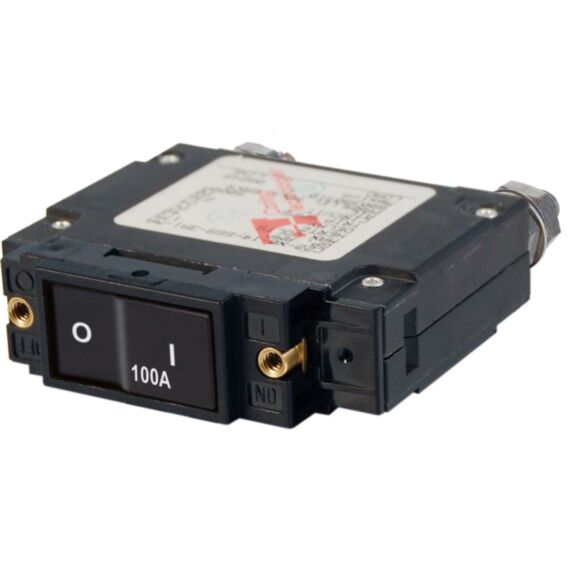

C-Series Flat Rocker Circuit Breaker - Single Pole 100A
SKU
BSS7549
Please note this item can only be purchased in Multiples of x5
- The rocker actuator is flush in the “ON” position, eliminating the risk of accidental switching
- The colour actuator indicates an “OFF” position
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- “Trip Free”—cannot be held closed after trip
- Ignition-protected—safe for installation aboard gasoline-powered boats
£43.64
RRP
Ex. VAT
| Specifications | |
|---|---|
| Amperage | 100A AC 100A DC |
|
Actuator Style *resists accidental switching by being flush in the ON position |
Flat Rocker |
| Poles | 1 |
| Maximum Voltage | 240V AC 48V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Terminal Stud | 1/4-20 Tin-Plated Brass |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
|
Interrupt Capacity *The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage |
3000A @ 120V AC 5000A @ 32V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | 6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.36lb (0.16 kg) |
