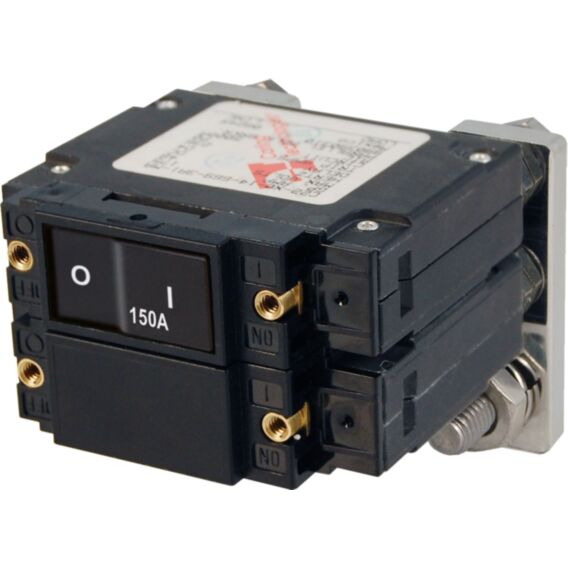

C-Series Flat Rocker Circuit Breaker - Double Pole 150A
Blue Sea Systems
SKU
BSS7475
Please note this item can only be purchased in Multiples of x5
- Paralleled poles have 5/16" stud on bus
- Rocker actuator is flush in the “ON” position, eliminating the risk of accidental switching
- Color actuator indicates “OFF” position
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- “Trip Free”—cannot be held closed after trip
£153.83
RRP
Ex. VAT
| Specifications | |
|---|---|
| Amperage | 150A DC |
|
Actuator Style *resists accidental switching by being flush in the ON position |
Flat Rocker |
| Poles |
2 *Paralleled poles have 5/16 |
| Maximum Voltage | 120V AC 240V AC 48V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Terminal Stud | 1/4-20 Tin-Plated Brass |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
|
Interrupt Capacity *The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage |
5000A @ 48V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | 6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.64lb (0.29 kg) |
