Bow Shackle - Hot Dip Galvanised

Waveline

SKU

Bow Shackle - Hot Dip Galvanised

Sold as singles

As low as £0.52

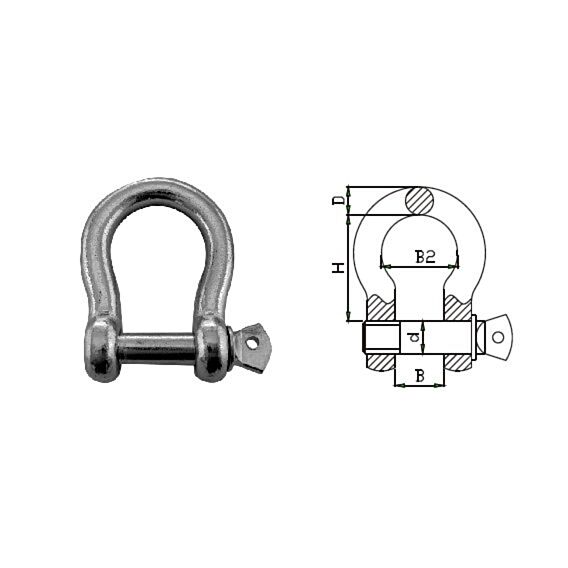

PART NO.	DIA	D (mm)	B (mm)	H (mm)	B2 (mm)	Breaking/Safe Working Loads
WL-11005	5mm	5	10	19.5	14	160KG/80KG
WL-11006	6mm	6	12	24	17	200KG/100KG
WL-11008	8mm	8	16	32	22	400KG/200KG
WL-11010	10mm	10	20	40	29	640KG/320KG
WL-2410-0711	11mm	11	22	44.5	32	1040KG/520KG
WL-11012	12mm	12	25	49	34	1040KG/520KG
WL-11014	14mm	14	28	59	41	1300KG/650KG
WL-11016	16mm	16	32	64	46	1600KG/800KG
WL-11020	20mm	20	38	80	59	2200KG/1100KG
WL-2410-0722	22mm	22	44	85	63	3000KG/1500KG
WL-11025	25mm	25	50	100	73	4200KG/2100KG
