Blade Fuse Blocks
SKU
Blade Fuse Blocks
As low as
£18.56
Description

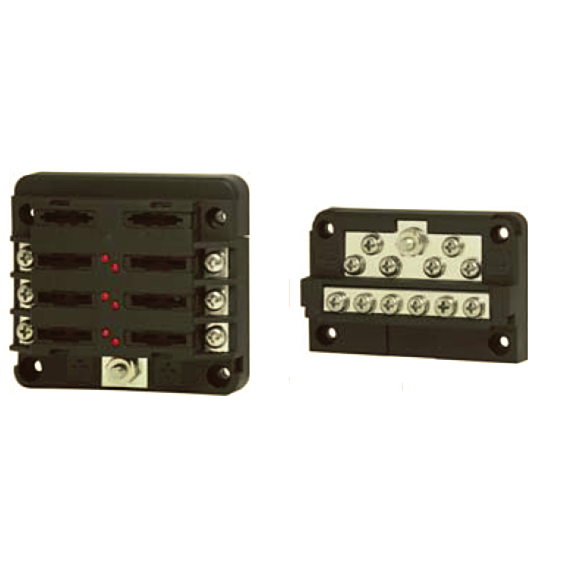

The BF27x series are compact and solid blade fuse blocks designed for 24-hour circuits. The fuse blocks come with blown fuse indication LEDs clear cover with recessed areas for label stickers.
Features
- Accepts Blade Fuses (ATP/ATC/ATO)
- Modular Design saves shelf space (2 items can be combined into 4 models)
- Transparent cover with recessed area for label stickers
- 60 pieces assorted label stickers set included
- Storage for 2 spare fuses (for each 6P block)
- LED indication of blown fuses
Specifications
- Voltage Rating | DC 32V Max
- Amp Rating per Branch | 30A (Screw Terminals)
- Max Cumulative Amp | 100A per block
- Terminal Stud Size | M5 (3/16”)
- Screw Size | M4 (5/32”)
