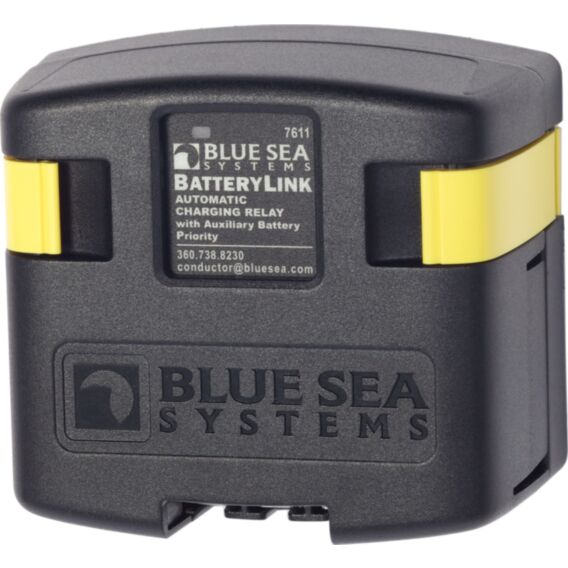

BatteryLink™ Automatic Charging Relay - 12V/24V DC 120A

SKU

BSS7611

Automatically shares the single source of the charge with Auxiliary Battery

Features

Optional Features

Optional Auxiliary Battery Priority connection shares the alternator charge with the Auxiliary battery longer when the engine is running to allow the use of auxiliary loads for an extended period of time
Remote LED remotely indicates ACR states - requires optional LED

£131.35

RRP Ex. VAT

Specifications
Nominal Voltage	12V DC 24V DC
Auxiliary Battery Priority*	Yes
Amperage Operating Current	175mA @ 12V (Combine) 115mA @ 24V (Combine) 15mA (Open)
Continuous Rating**	120A
Intermittent Rating***	210A (5 min)
Maximum Cable Size	1/0 AWG
Maximum Torque	140 in-lb (15.82 Nm)
Stud Material	Tinned Copper
Terminal Stud Size	3/8" - 16 (M10)
Relay Contact Position
Combine 30 sec	13.6V @ 12V 27.2V @ 24V
Combine 2 Min	13.0V @ 12V DC 26.0V @ 24V DC
Over Voltage Lockout	16.0V @ 12 V 32.0V @ 24 V
Open Low	12.75V @ 12 V 25.5V @ 24 V
Auxiliary Priority
Open Low	12.25V @ 12V 24.5V @ 24V
Weight	1.25lb (0.57 kg)

*Condition Engine running

Open voltage is lowered to 12.25V from 12.75V
Relay remains closed longer, combining batteries, to allow the use of auxiliary loads for a longer period of time

**The maximum current a switch is designed to conduct for an indefinite period

***The maximum amount of current a switch is designed to carry for a minimum of a designated period of time

SI-ACR Automatic Charging Relay - 12/24V DC 120A
