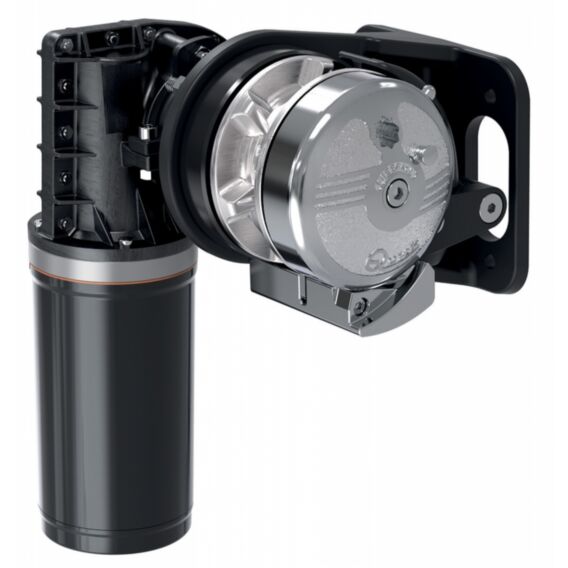

BALDER BL2 P Series Windlass
Quick
SKU
BL Series Windlass
Fitted with a 100% recyclable technopolymer gearbox, the Quick Balder BL2 Windlass with Horizontal Axis range is designed for installation in the anchor locker compartment.
Product Information
The Quick Balder BL2 is a horizontal windlass that adapts easily to every need, allowing various combinations.
- Horizontal windlasses
- Maximum flexibility of installation
- AISI 316 Stainless steel and chromed bronze
- Integrated sensor and magnet for chain counter
- Rope and chain on a single gypsy
- Automatic system of anchor-rode free-fall
- Supplied with chain guide device
- Supplied with pressure lever
- Technopolymer gearbox
Product Specifications
| BL2 P FF 600 | BL2 P FF 900 | BL2 P FF 1200 X | ||||
| Motor Power | 600W | 900W | 1200W | |||
| Motor Supply Voltage | 12V | 24V | 12V | 24V | 12V | 24V |
| Maximum Working Load | 200kg / 440.9lb | 220kg / 485.0lb | 300kg / 661.4lb | 320kg / 705.5lb | 420kg / 925.9lb | 480kg / 1058.2lb |
| Maximum Chain Speed | 28.9 m/min / 94.8 ft/min | 28.2 m/min / 92.5 ft/min | 22.6 m/min / 74.1 ft/min | 25.3 m/min / 83 ft/min | 31.2 m/min / 102.4 ft/min | 30.1 m/min / 98.7 ft/min |
| Protection Circuit Breaker (1) | 80A | 40A | 95A | 50A | 130A | 75A |
| Weight | 12.3kg / 27lb | 12.3kg / 27lb | 16.4kg / 36lb | 16.4kg / 36lb | 17.6kg / 38lb | 17.6kg / 38lb |
| Boat Length | 5-8m / 16-26ft | 5-8m / 16-26ft | 5-9m / 16-29ft | 5-9m / 16-29ft | 7-10m / 23-33ft | 7-10m / 23-33ft |
(1) With circuit breaker designed for direct currents (DC) and delayed-action (thermal-magnetic or hydraulic-magnetic).
| Barbotin | 6 mm | 7 mm - 1/4" | 8 mm | 5/16" | |||||
| Chain Size | 6 mm | 6 mm | 7 mm | 7 mm | 1/4" | 1/4" | 8 mm | 8 mm | 5/16" |
| ISO | DIN 766 | DIN 766 | ISO (**) | G4 | BBB | DIN 766 | ISO (**) | G4 | |
| Rope Size (1) | 1/2" (12.7 mm) | 1/2" (12.7 mm) | 1/2" (12.7 mm) | 1/2" (12.7 mm) | 1/2" (12.7 mm) | ||||
(1) The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Quick®” system.
(*) Gypsy codes, see engineering drawings on page 13 of manual
(**) ISO EN 818-3.
