Aqua Signal OEM Series 40-12V PORT
SKU
3504296000

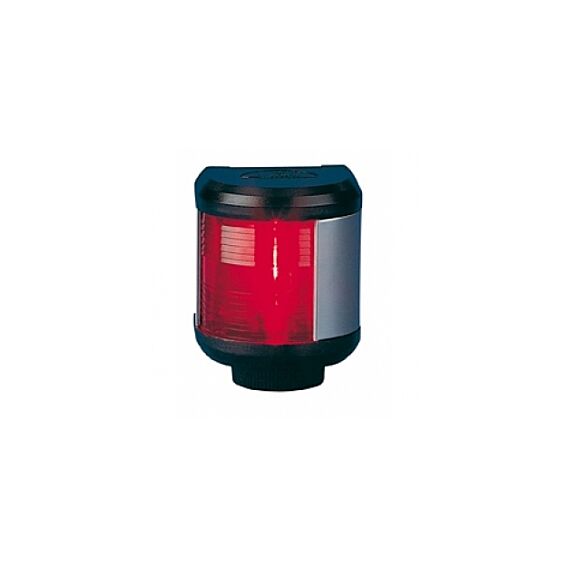

Aqua Signal OEM Series 40-12V PORT
£121.65
RRP
Ex. VAT
OEM version. Navigation lights - in a traditional and robust housing.
| Technical data | |
| IP classification: | 56 |
| Maximum ambient temperature (°C): | 45 |
| Dimensions | |
| Net weight (kg): | 0,4 |
| Gross weight (kg): | 0,478 |
| Width (mm): | 89 |
| Height (mm): | 130 |
| Depth (mm): | 80 |
| Body | |
| Body material: | Polycarbonate |
| Colour of body: | Black |
| Optic | |
| Optic: | Red lens |
| Material of diffuser: | Plastic |
| Visibility (nm): | 2 |
| Angle of visibility (°): | 112.5 (Port/Starboard) |
| Electrical data | |
| Voltage from (V) | 12 |
| Maximum voltage (V) | 12 |
| Light source | |
| Light source | Bulb |
| Lamp base | BAY 15d |
| Number of lamps | 1 |
| Lamp power (W) | 25 |
| Termination | |
| Ready for mоunting | side-mount |
| Remarks | |
| Remarks | For ships |
