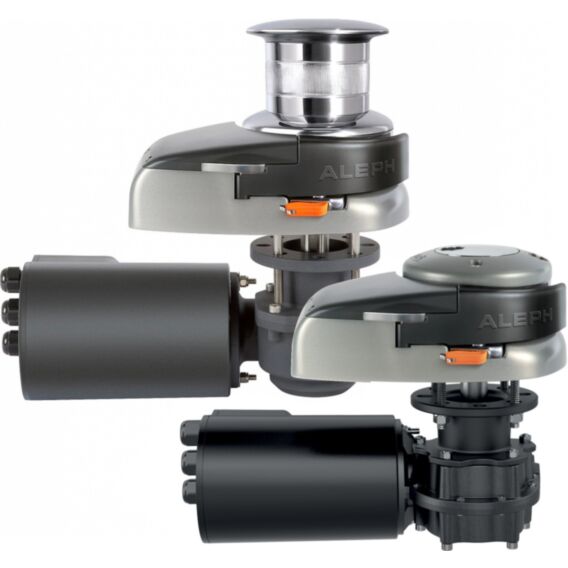

Easy to install with an anodised aluminium base, the Quick Aleph Windlasses are vertical mount and are available in 700/700D, 1000/1000D, and 1500/1500D models. These windlasses feature an integrated sensor and magnet for chain counter and a manual free-fall system.
Product Information
- Vertical windlasses
- Base in anodized aluminium in hard oxide
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection lid
- IP67 watertight motor
- Anodized aluminium gearbox (1500W) / Technopolymer gearbox (700W / 1000W)
Product Specifications
| AL3 P 700 / 700 D | AL3 P 1000 / 1000 D | AL3 1500 / 1500 D | ||||
| Motor Power | 700W | 700W | 700W | |||
| Motor Supply Voltage | 12V | 24V | 12V | 24V | 12V | 24V |
| Maximum Pull | 850kg / 1874lb | 1000kg / 2204lb | 1100kg / 2425lb | |||
| Maximum Working Load | 250kg / 551lb | 300kg / 661lb | 370kg / 816lb | 450kg / 992lb | 470kg / 1036lb | 540kg / 1190Ib |
| Working load | 80kg / 176lb | 100kg / 220lb | 120kg / 264lb | 150kg / 331lb | 160kg / 353lb | 180kg / 397lb |
| Current Absorbtion @ Working Load (1) | 90A | 55A | 140A | 80A | 155A | 85A |
| Maximum Chain Speed (2) | 27.4 m/min / 89.9 ft/min | 26.4 m/min / 86.6 ft/min | 39.6 m/min / 129.2 ft/min | 40.9 m/min / 134.2 ft/min | 29.2 m/min / 95.8 ft/min | 29.7 m/min / 97.4 ft/min |
| Maximum Chain Speed @ Working Load (2) | 14.4 m/min / 47.2 ft/min | 14.8 m/min / 48.6 ft/min | 20.4 m/min / 66.9 ft/min | 21.4 m/min / 70.2 ft/min | 16.3 m/min / 53.5 ft/min | 19.0 m/min / 62.3 ft/min |
| Weight - Aleph (without drum) | 17.4kg / 39lb | 18.6kg / 41lb | 20.8kg / 45.9lb | |||
| Weight - Aleph D (with drum) | 18.5kg / 40lb | 19.7kg / 43lb | 22.2kg / 48.9lb | |||
1) - After an initial period of use
2) - Measurements taken with a gypsy for a 8 mm chain
| Gypsy | 8mm - 5/16" | 10mm - 3/8" | ||||
| Chain> | 8mm | 8mm | 5/16" | 5/16" | 10 mm | 3/8" |
| DIN 766 | ISO | G4 | BBB | ISO | G4 | |
| Rope | 1/2" (12.7mm) - 9/16" (14.2mm) - 5/8" (15.8mm) | 5/8" (15.8 mm) | ||||
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick®" system.
Boat Specifications
For boats from 7 to 15 metres (23 - 49 ft) in length.
| Model | Boat Length | |
| Aleph 700W | 7 - 10m | 23 - 33ft |
| Aleph 1000W | 10 - 14m | 33 - 46ft |
| Aleph 1500W | 12 - 15m | 39 - 49ft |
The indication may vary according to the boat type and the anchor-rode type
